Quick Details
Description
| Model NO: |
WM95A |
| Size(LxWxH): |
1100x500x1200mm |
| Rated Power: |
7.5KW |
| Rated Voltage: |
380V |
| Net Weight: |
170kg |
| Capacity: |
400~600kg/h |
| Package |
Standard Export Wooden |

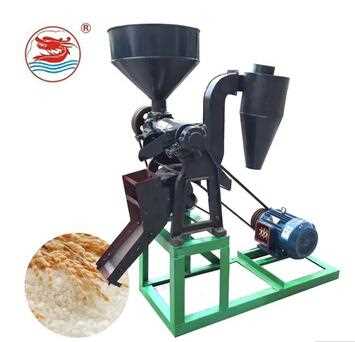

This machine adopts the advantages of jet rice mill and roller rice mill. It introduces the rest wind of the separator into the rollers and into the whitening chamber, which improves the processing conditions. The structure is novel and unique. It can grind the paddy directly into white rice or grind the brown rice into white rice. Its biggest advantage is that it has a high yield, low power consumption, low temperature rise and high productivity.
When the machine starts to mill paddy, the paddy is flowing into the feeding hopper and goes into the milling chamber, which is consisted of machine cover, roller, rice screen, case, etc. The milling process of rice can be finished by the effect of mechanical grinding force. The fan of the main shaft blows the cold wind into the polishing chamber, which can reduce the rice temperature and reduce the rate of broken rice. The mixture of white rice and bran flakes flows out of the rice bowl. After flowing into the separator, the white rice that is clean and free of dust is separated. The coarse chaff and chaff dust are sucked out by the fan and back flow into hopper, which will be processed into fine chaff in the milling chamber with paddy. The broken rice in white rice is separated from the separator's rice sieve. Finally, white rice, broken rice and fine chaff are separated.
Sichuan Wanma Machinery Manufacturing Co., Ltd. was established in 2000.Mainly involved in the manufacturing of agricultural mechanical products, such as grain dryer, combine of rice polisher, wood crusher,grain processing combined machine,rice pulverizer,mini grain haverster,corn thresher,rice milling machine,grinding machine,chaff cutter,fodder chopper,tea twisting machine,tillage machine etc.
Under the joint efforts of all staff,our company won the honor as: National high and new technology enterprises, Famous Brand in Sichuan Province, and the Famous Brand in Leshan City. Also the Key leading enterprises of Leshan City. Our company actively cooperate with the Sichuan research & design institute of agricultural machinery,Become a test base for scientific and technological achievements of the institute.
By far our company has more than 42 national patents,2 invention patents.Take the lead or participate in the formulation of the 1 national standards,1 provincial standard.3 technical results were identified as the leading domestic level.1 technological achievements won the first prize of scientific and technological progress.
All of our products have the typical authentication, such as ISO,SGS,IAF,CNAS,CCC. We also provide professional technology and after-sales service. We promise one year guarantee for all of our products to meet the requirement of our customer. Our products support by the powerful funds and policy of many states' government for agricultural machinery products. Our products are popular more than 20 provinces and cities in China and Vietnam, Thailand, Burma, Malaysia, Laos and other countries and regions
