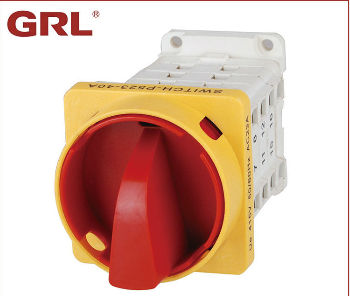

WP523 universal changeover switch is an manual transfer switch , assure the changing of power supply, low voltage circuit with load etc.It widely used for controlling three phase asynchronism electromotor, can replace every different change over switch .
Function of auto switches
==>The switch are manual multipolar changeover switches
==>The provide changeover,source inversion or switching underload between two low voltage power circuits,as well as their safety isolation.
General charateris teristics of auto switches
==>Fully visualised breaking
==>Fully integrated bridging bars
Installing dimension of auto switches
| Thermal current Ith (40℃) |
16A |
25A |
40A |
63A |
80A |
100A |
| Rated insulation voltage Ui(V) |
660 |
| Rated impulse withstang voltage Uimp (kV) |
|
|
|
|
|
|
| Rated operation current le (A) |
400 VAC |
AC-21A |
16 |
25 |
40 |
63 |
80 |
100 |
| AC-22A |
16 |
25 |
40 |
63 |
80 |
100 |
| AC-23A |
11 |
20 |
32 |
63 |
63 |
63 |
| Reactive power (kvar) |
At 400 VAC |
|
14 |
18 |
28 |
37 |
|
| Fuse protected short-circuit withstand(kA rms prospective) |
prospective short-circuit current (Ka rms) |
6 |
6 |
6 |
8 |
8 |
8 |
| Associated fuse rating (A) |
20 |
25 |
40 |
63 |
80 |
100 |
| Overload capacity |
Short-circuit making capacity (kA peak) |
2 |
2 |
2.6 |
5.8 |
5.8 |
6.5 |
| connection |
Minimun Cu cable section(mm²) |
|
2.5 |
6 |
10 |
16 |
16 |
| Maximun Cu cable section(mm²) |
|
6 |
16 |
50 |
50 |
50 |
| Tightening torque min(Nm) |
|
2 |
2 |
4 |
4 |
4 |
| Mechanical characterisistics |
Endurance (Number of operating cycles) |
100000 |
100000 |
100000 |
100000 |
100000 |
100000 |
| weight of 3P switch (kg) |
|
0.25 |
0.3 |
0.55 |
0.63 |
0.63 |
| Weight of 4Pswitch (kg) |
|
0.31 |
0.4 |
0.7 |
0.8 |
0.8 |
| |
| Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product. And contact me! |
![]()
![]()
![]()
![]()
![]()
