Features
1. Widely used, simple operation, processing range
2.Ensure the axis of concentricity less than 0.009mm
3.Chuck beat precision less than0.05mm
4. Strong power, maintaining the dc motor
5.speed of main spindle from 50-1250rpm and 100-2500rpm
6. After quenching and precision grinding of cast iron bed
7. High precision, quenching spindle
8.European standard safety magnetic switch
9. Cost saving, precise and stable value
Standard accessories
1. 3-jaw check Φ100mm;2dead center MT2;3.change gears;4.hexagon wrench ;5spanner ;6splash guard ;7chip tray
Optional accessories
1.steady rest ;2.follow rest ;3turning tools. 8*8mm ;4.live centerMT2 ;5.ER25collector holder ;
6.ER25ollector holder stock;7.face plate 100mm;8.4-jaw chuck Φ100mm ;9.flange plate;10.oil gun
Specification
|
model
|

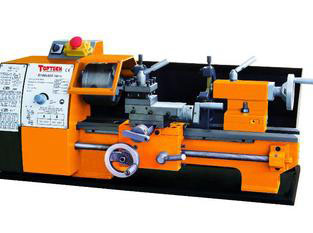

Turner 180*300
|
|
Type
|
Bench lathe
|
|
Control form
|
Manual work
|
|
Max. swing over bed
|
Φ180mm
|
|
Distance between center
|
300mm
|
|
Spindle bore
|
Φ21mm
|
|
Spindle taper
|
MT3
|
|
Spindle speed variable
|
150-3000rpm
|
|
Center height
|
90mm
|
|
Lathe body width
|
90mm
|
|
Top slide travel
|
55mm
|
|
Cross slide
|
75mm
|
|
Taper of tailstock quill
|
MT2
|
|
Taper of tailstock travel
|
35mm
|
|
Direst feed
|
0.05~0.1mm
|
|
Motor power
|
600W /230V 50hz
|
|
NW/GW
|
44/66Kg
|
|
Package size
|
760*500*480mm
|
