Quick Details
Description

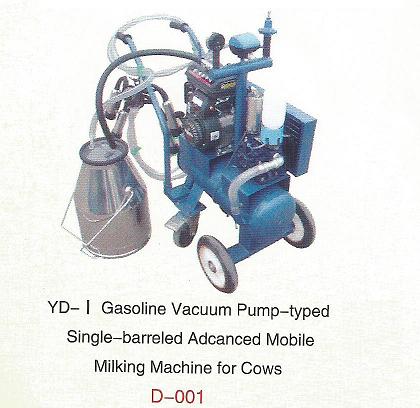

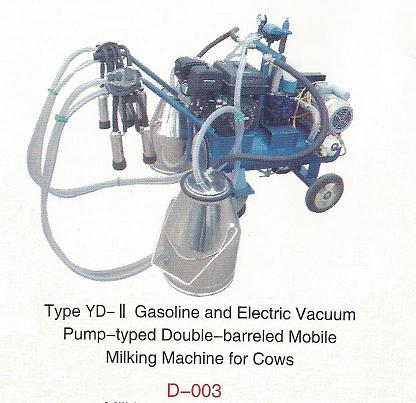

According to the number of barrels used, Vacuum Pump-typed Advanced Mobile Milking Machine can be divided into two categories, they are Single-barrel Type (Type YD-I) and Double-barrel Type (Type YD-II).With unique design, easy operation, easy maintenance, it can lower utility costs; by milking soft with stable vacuum , it will not hurt the nipple. Milk cup group is with s transparent tube, so, the operator can observe the nipples of cows when milking.
Vacuum pump, electric motor, pulsator, milk cup group and milk bucket are integrated in a car. With movable operation, being convenient and flexible, and without space constraints, it is suitable for remote areas, or areas without electricity. Users can milk the cows in the pastures, so it has brought great convenience to the dairy farmers.
Main Performance and Technology Parameters
|
Item model
|
YD-I
|
YD-II
|
|
Operation Vacuum Degree
|
0.04-0.05 MPa(adjustable)
|
0.04-0.05 MPa(adjustable)
|
|
Pulsation Times
|
60-80 times per minute
|
64 times per minute
|
|
Pulsation Rate
|
60/40
|
60/40
|
|
Power Fitted
|
0.55KW
|
0.55KW
|
|
Voltage
|
110V,220V,240V or 380V
|
110V,220V,240V or 380V
|
|
Gasoline Engine Standard KW Power and Rotating Speed
|
1.3/1.5/2.5/3.1/3.8/3600
|
1.3/1.5/2.5/3.1/3.8/3600
|
|
Motor Speed
|
1440 rpm per minute
|
1440 rpm per minute
|
|
The Number of Milking Cattle Per Hour
|
10-12 cows per hour
|
20-24 cows per hour
|
|
The Number of Stainless Steel Milk Bucket
|
One(capacity of 25kg)
|
Two (each of capacity of 25kg)
|
|
Employees Needed When Milking
|
one
|
One
|
|
Vacuum Pump Capacity(L/min)
|
200/250
|
200/250
|
|
The Number of Milking Cup Group
|
One set
|
Two set
|
Zibo lukin machinery factory is a collection of livestock machinery production, management, sales for the integration of comprehensive factories, has the rich production experience and strong technical force, reliable test method, advanced technology and equipment, and that the quality of the products more reliable, from the customer high praise, products are sold throughout the country, our factory is specialized in the production and business operation stainless steel milk barrels, imported transparent milk barrels, milk cup piston milking machine, vacuum pump type milking machine, set milk ware, measuring bottle, pipe bucket type milking machine, herringbone type milking hall, herringbone paratactic type milking hall design and installation, and sales of transparent tube, various parts of rubber inside. The adhering to the "customer is god" business philosophy, with first-class technology, perfect after-sales service, lets users worry-free.
Adhere to the quality strives for the survival, to the prestige strives for the development, the most outstanding products, the most preferential price, the most efficient service, from all walks of life friend, altogether will create magnificently!
