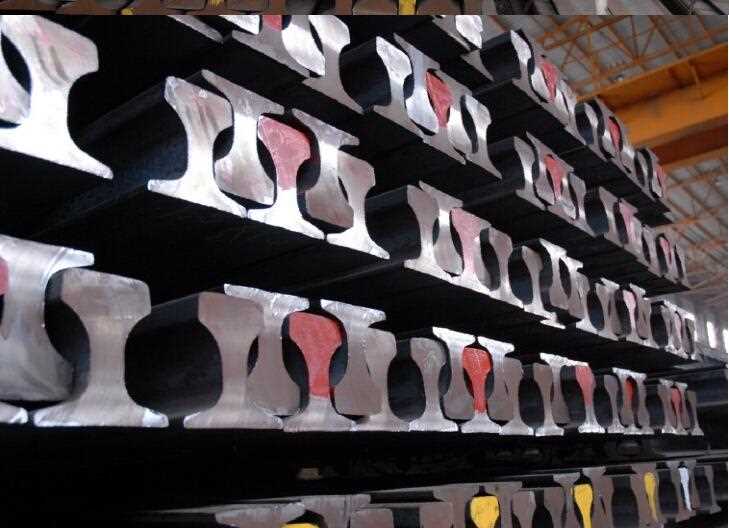

Quick Details
Description
Standard: GB
Grade: U71Mn
Rail Heigth: 170mm
Bottom Width: 170mm
Web Thickness: 44mm
Head Width: 120mm
Length: 12m
Place of Origin: Hebei, China (Mainland)
Brand Name: YongYang
Model Number: QU120
Type: Heavy Rail
Application: crane
Weight: 118.1kg/m
Secondary Or Not: Non-secondary
Bolt Hole Diameter: ...
Certificate: ISO9001-2008
Packaging & Delivery
| Packaging Details |
Packed in bundle with iron wire |
|---|
| Delivery Time |
Deliver in 15-30days after receipt of the payment or L/C |
|---|
| THE LIST OF YYGT |
| |
| Name of Commodity |
Specificaton |
Materials |
Standard of Products |
Theory Weight |
Length of Dimension (m) |
Packed in bundle with iron wire (pcs/bundle) |
| Light Rail |
4kg/m |
Q235 |
Q/YYG001-2008 |
4kg/m |
6,8,9,10 |
75 |
| 8kg/m |
Q235 |
Q/YYG001-2008 |
8.42kg/m |
55 |
| 12kg/m |
Q235 |
GB11264-89 |
12.2kg/m |
36 |
| 15kg/m |
Q235/55Q/50Q |
GB11264-89 |
15.2kg/m |
28 |
| 18kg/m |
Q235/55Q/50Q |
YB222-63 |
18.02kg/m |
21 |
| 22kg/m |
Q235/55Q/50Q |
GB11264-89 |
22.3kg/m |
21 |
| 24kg/m |
Q235/55Q/50Q |
Q/YYG001-2008 |
24.46kg/m |
21 |
| 30kg/m |
Q235/55Q/50Q |
GB11264-89 |
30.1kg/m |
15 |
| Heavy Rail |
38kg/m |
U71Mn/U71/45Mn |
GB2585-2007 Q/YYG002-2008 |
38.733 |
12,12.5 |
10 |
| 43kg/m |
U71Mn/U71/45Mn |
GB2585-2007 Q/YYG002-2008 |
44.653 |
10 |
| 50kg/m |
U71Mn/U71/45Mn |
GB2585-2007 Q/YYG002-2008 |
51.514 |
10 |
| Crane Rail |
QU70 |
U71Mn |
YB/T5055-93 |
52.8kg/m |
12,12.5 |
10 |
| QU80 |
YB/T5055-93 |
63.69kg/m |
10 |
| QU100 |
YB/T5055-93 |
88.96kg/m |
5 |
| QU120 |
YB/T5055-93 |
118.1kg/m |
5 |
| I-beam of Mine Usage Steel |
9# |
20MnK/ Q235 |
YB/T5047-2000 |
17.69kg/m |
8,9,10 |
28 |
| 11# |
YB/T5047-2000 |
26.05kg/m |
18 |
| 12# |
YB/T5047-2000 |
31.18kg/m |
15 |
| U-beam Of The Mine Channel Steel |
25U |
20MnK/ Q235 |
GB4697-1991 Q/YYG006-2008 |
24.95kg/m |
8,9,10,12 |
15 |
| 29U |
GB4697-1991 |
29kg/m |
15 |
| 36U |
Q/YYG006-2008 |
35.87kg/m |
15 |
| |
|
|
|
|
|
|
| Name of Commodity |
Specificaton |
Materials |
Standard of Products |
Theory Weight (kgs/set) |
Length of Dimension (cm) |
Packed in bundle with iron wire (set) |
| Fish Plate |
8kg |
Q235B |
GB11265-89 |
0.8 +0.8 =1.6 |
|
50 |
| 1+1=2 |
| 12kg |
GB11265-89 |
1.1+1.1=2.2 |
45.5 |
50 |
| 2.6-3.0 |
| 15-18kg |
GB11265-89 |
3.6-4.0 |
53.54 |
25 |
| 4.6-5.0 |
| 5.6-6.0 |
| 22-24kg |
GB11265-89 |
6.6-7.0 |
61.73 |
20 |
| 7.6-8.0 |
| 8.4-9.0 |
| 30kg |
GB11265-89 |
14.4-15.0 |
71.48 |
10 |
| 16.4-17.0 |
| 43kg |
GB185-63 |
57.0-58.0 |
79 |
1 |
Hebei Yongyang special Steel group Co., Ltd. is a joint venture with the registered capital of RMB 23 million, invested in by Yongnian Roll Steel Factory, Hunan Changde Urban Construction Development Company and Hong Kong Yizhou Company Ltd. in 1993. Our company has more than 3,000 employees, including more than 150 high-level technical professionals and managers.
The total fixed assets are around RMB 1.1 billion. Our firm has a land area of more than 200,000 square meters. In 2009, the total production value reached RMB 4.9 billion and the tax reached RMB 240 million. Our annual designed output of steels is 900,000 tons.
The main products of our company are light rails of 4-30 KGS/M, heavy rails of 38kgs/M, 43kgs/M,50kgs/M, crane rails of QU70 / QU80 / QU100 / QU120, I-beam steels of 9# /11# /12# for mining usage, U-Beam steels of 25U / 29U / 36U for mining support usage, fish plates of 4-43 KGS/M and other related products. Our products are now sold to more than 30 provinces, cities and municipalities and some of them are sold to South America and Southeast Asia as well as many other countries. Our company has the best facility and testing instruments, a complete inspection system and advanced technology to keep our goods excellent. Our goods have won fine comments from our consumers for more than ten years.
Since the establishment, our company has insisted on the principle of high quality and the best service. Our Company attained ISO9001:2000 International Quality Management System Certificate in 2001. Our firm was nominated as the supplier of coal mine support products by coal industry department of our country in 2007. Our light tracks of "yongyang" brand successively won the title of the High-Quality Goods of Hebei Province.
We keep on insisting on our target to create a bright future. Economic development is the main theme of our master strategy. This will be achieved through persistently enhancing our competitiveness, improving production technologies, and continuously upgrading our products.
The company has a superior geographic position. Our firm is located in the north of Handan City, Heibei Province, China. Our company is adjacent to Beijing, and near to Zhuhai Highway and No.107 National Road. Therefore, the transportation is very convenient.
We will do our best to provide superior service for our customers and faithfully hope to cooperate with all friends from all over the world.
