Quick Details
Description
Quick Details
Drive Wheel: 4x2 Capacity (Load): 11 - 20t Horsepower: 150 - 250hp Condition: New Transmission Type: Automatic Emission Standard: Euro 3 Fuel Type: Diesel Engine Capacity: > 8L Gross Vehicle Weight: 8500 Place of Origin: Shaanxi, China (Mainland) Brand Name: TongLi Model Number: TLK190 Dimensions (L x W x H) (mm): 600X2480X2550 Key words: Tunnel dump truck 20Ton Max. engine torque: 630N.m/(1400r/min-1700r/min) Engine power: 140Kw(190Ps/2500rpm Lifting mode: Mid-mounted double-top multi-stage cylinde Max. lifing angle: 41° Max. speed: 70km/h Max. gradeability: 30% Min. turning radius: 7.1m Min. ground clearance(front axle): 260mm Axle base: 3800
Packaging & Delivery
Packaging Details: Nude package on RoRo ship or Bulk ships
Delivery Detail: 45Days
Product Description

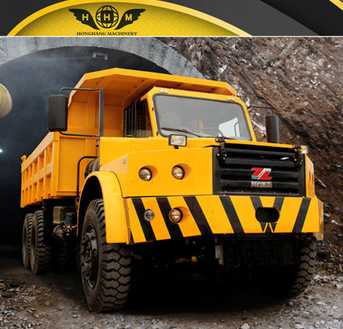

Tunnel dump truck 20Ton
1. Good passing ability: It adopts compact structure through special design on the cab, suspension, frame, compartment, and the lifting mechanism. The vehicle is 2.38 meters high and 7 meters long, featuring small turning radius and flexible operation, applicable to work in roadway ramps and narrow spaces.
2. High safety: In consideration of the underground environment, i.e. Moist air, insufficient light, wet and slippery roads, the vehicle is improved in lamps and electrical components and the waterproof performance is enhanced. It adopts special slip resistant tires, featuring good pass ability and safety.
3. Strong power: with YC6A240-20 and YC6L290-20 engines, it features strong power, big torque, excellent climbing and start-up performance ;
4. High load bearing capacity: 13 ton shock absorber and stabilizer bar suspension ensure the transport capacity in underground ramps, which greatly improves the safety.
5，We can supply the tunnel dump trucks from 10ton to 30ton
HongHang has passed the international quality management system of ISO9000, CE, SGS, UL and other products certification. We had an excellent after-sales service system in the interests of customers to establish good strategic partnerships with agencies around the world. We won the good reputation from reliable quality, competitive price and excellent after-sales service. Our export revenue increases constantly every year, and our products have already entered nearly 100 countries across the continents of South America, Africa, Middle East, Australia, Russia, Middle Asia, South Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you.
