Focusun is proud of inventing the first tube ice machine in the world. Over 80 years of manufacturing experience strengthens its advanced ice making technology.
Tube ice is a kind of hollow cylindrical ice with external diameter ø22、ø29、ø35mm and length 25～42mm. The hole diameter is usually ø5～10mm and it can be adjusted according to ice making time.
Features: Tube ice is thick and transparent with long storage period. It isn't likely to melt in a short time.
Application: Daily eating, keeping vegetable and seafood fresh, etc.
Tube Ice Machine Features:
- Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
- After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
- With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.
- The use of stainless steel SUS304,aluminum alloy plate-type evaporator, accords with the health and safety requirements.
- The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs.
- Half-full liquid: liquid level controller which manages liquid supply of refrigerant makes the system more stable
Equipment working theory:
| 01:Upper water tank |
| 02:Water inlet |
| 03:Distributor |
| 04:Shell |
| 05:Inside heat exchange pipe |
| 06:Heat exchange |
| 07:Reducer |
| 08:Ice cutter |
| 09:Water outlet |
| 10:Ice water separation pan |
| 11:Waste outlet |
| 12:Ice duct |
| 13:Low water tank |
As shown, when the refrigeration system begins operating normally, the water in the tank below is transported from the water outlet to the water inlet of upper water tank by the water pump. After the water goes across the distributive pipe, it downwardly flows along the wall of the heat exchange tube. The water then begins a heat exchange with the refrigerant outside heat exchange pipe, which lowers the temperature. Some of the water is formed into tube ice, while the water which does not become ice returns to the low water tank. The water continues circulating so that the ice gets thick, and the hole of tube ice also becomes smaller and smaller.
After a period of time, water stops circulating and the refrigeration system changes into ice cutting mode. The ice cutting framework then begins to operate. The surface of the heat exchange pipe consists of refrigerant hot gas with high-pressure. The hot gas begins a heat exchange with the tube ice in the pipe wall. Hot gas makes contact between the tube ice and the wall of heat exchange, thawing the ice so that it looses adhesive force. The ice then drops into an ice cutting framework because of gravitational force and finally is cut into many pieces of tube ice.

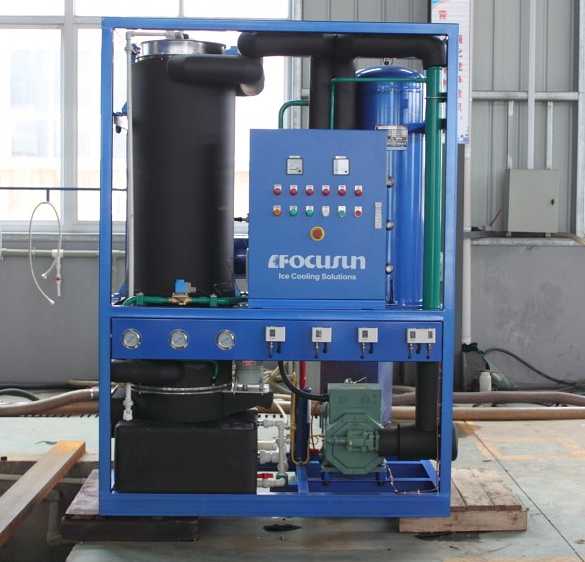

The small capacity tube ice machine, whose capacity ranges from 1 ton/24hrs to 8 ton/24hrs, is a complete unit so it's quite compact and space-saving.
- All equipments are assembled in the steel frame except cooling tower.
- Suitable for container shipment, easy to ship, move and install.
- Can be put into use given water and electricity source.
Standard power supply for small capacity tube ice machine is 380V/3P/50Hz and it can be customized to meet different electrical requirements.
| Small capacity tube ice machine technical parameters. |
| F | Capacity | Refrigerant | Electricity consumption | installed power | Operating weight | Dimension |
|---|
| Model |
Ton/Day |
-- |
Kw |
Kw |
Kg |
mm |
| FIT-10 |
1.0 |
R22/R404A |
4.74 |
6.0 |
890 |
1400×800×1800 |
| FIT-15 |
1.5 |
R22/R404A |
5.33 |
7.0 |
890 |
1500×800×1800 |
| FIT-20 |
2.0 |
R22/R404A |
8.36 |
10.0 |
1100 |
1600×800×2000 |
| FIT-25 |
2.5 |
R22/R404A |
9.74 |
12.0 |
1100 |
1600×800×2000 |
| FIT-30 |
3.0 |
R22/R404A |
11.01 |
13.5 |
1250 |
1700×920×2000 |
| FIT-35 |
3.5 |
R22/R404A |
12.83 |
16.0 |
1250 |
1800×920×2200 |
| FIT-50 |
5.0 |
R22/R404A |
16.03 |
20.0 |
1650 |
1700×1200×2200 |
| FIT-60 |
6.0 |
R22/R404A |
18.42 |
28.0 |
1650 |
1800×1250×2200 |
| FIT-80 |
8.0 |
R22/R404A |
24.55 |
30.0 |
1650 |
2000×1450×2200 |
Large capacity tube ice machine - Focusun Ice Machine
Large capacity ice tube machine features a modular design which makes it easy to install, ship and operate. The whole unit consists of 3 parts:
- Evaporator module: the evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting, place the evaporator horizontally and stand it upright when installing.
- Compressor module: compressor, condenser, reservoir, liquid receiver, oil seperator, and electric control box are installed on a steel frame to form the whole set.
- Cooling tower module: cooling tower, water pump and water pipesStandard power supply for large capacity tube ice making machine is 380V/3P/50Hz and it can be customerized.
| Large capacity tube ice machine technical parameters. |
| Model | Capacity | Refrigerant | Electricty consumption | installed power | Operating weight | Dimension |
|---|
| -- |
Ton/D |
-- |
Kw |
Kw |
Kg |
mm |
| FIT-100 |
10 |
R22/R404A |
34.95 |
45 |
Unit:1560 |
1800×1500×1600mm |
| Evaporator:2296 |
1180×1180×3500mm |
| Cooling tower:670 |
Φ2000×2410mm |
| FIT-150 |
15 |
R22/R404A |
48.40 |
60 |
Unit:1890 |
2000×1800×1600mm |
| Evaporator:2685 |
1250×1250×4200mm |
| Cooling tower:670 |
Φ2175×2565mm |
| FIT-200 |
20 |
R22/R404A |
68.50 |
85 |
Unit:2260 |
2200×2000×1800mm |
| Evaporator:3650 |
1350×1350×4600mm |
| Cooling tower:1120 |
Φ2175×2565mm |
| FIT-250 |
25 |
R22/R404A |
85.30 |
105 |
Unit:2680 |
2400×2200×2000 |
| Evaporator:4260 |
1450×1450×4800mm |
| Cooling tower:1300 |
Φ2650×2645mm |
| FIT-300 |
30 |
R22/R404A |
105.00 |
130 |
Unit:3280 |
2800×2200×2000mm |
| Evaporator:4860 |
1450×1450×5200mm |
| Cooling tower:1630 |
Φ3050×2780mm |
| FIT-350 |
35 |
R22/R404A |
116.00 |
140 |
Unit:3860 |
3500×2200×2000mm |
| Evaporator:5650 |
1500×1500×5500mm |
| Cooling tower:2730 |
Φ3770×3490mm |
| FIT-400 |
40 |
R22/R404A |
139.60 |
170 |
Unit:4250 |
3600×2200×2000mm |
| Evaporator:5890 |
1500×1500×5800mm |
| Cooling tower:2730 |
Φ3770×3490mm |
| FIT-500 |
50 |
R22/R404A |
177.00 |
220 |
Unit:4560 |
4300×2200×2000mm |
| Evaporaor:6500 |
1800×1800×6000mm |
| Cooling tower:3770 |
Φ3770×3690mm |
