Quick Details
Description
- Design: Scissor
- Type: Double Cylinder Hydraulic Lift
- Certification: CE
- Lifting Capacity: 4000kg
- Lifting Height(mm): master1700mm secondary450mm
- Overall Width(mm): 2000mm
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Tianyi
- Model Number: TY-J03A
- Warranty: 12 Months

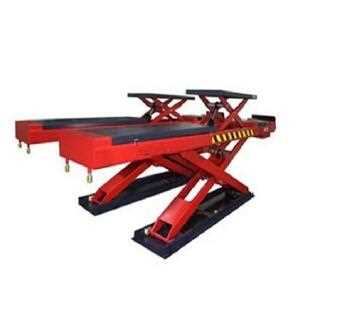

- Product name: Tianyi car lift/ultra thin scissor lift/portable hydraulic car lift
- Lifting Time: 60s
- Platform Length: 4760mm
- Power Supply: 110/220/380V
- Motor power: 2 .2kw
- Application: 4Sshop
- Usage: Car Repair Maintenance Lifting
- Color: as you required
- Size: as you required
- OEM: Yes
Technical Parameter
|
Lifting Capacity:
|
3500kg
|
|
Lifting Height:
|
Master1700mm secondary 450mm
|
|
Lifting Time:
|
Master1.2m/min secondary1.2m/min
|
|
Power Supply:
|
3.0KW-380V or 3.0KW-220V
|
|
Air Supply:
|
6-8kg/cm²
|
|
External Size:
|
4200L*2000W*360Hmm
|
|
Equipment Weight:
|
1780kg
|
Features
1.Use slabbed construction,space usage is small.
2.Having pneumatic self-locking,safety and reliable.
3.The hydraulic system use pile-up valve plate suet road,and import sealing element.Make sure the stability of machine and working life.
4.Can be used to case of power failure down manually.
Shandong Tianyi Equipment&Technology Co., Ltd. is located in the Zouping County of Shandong Province. Our company specializes in manufacturing garage and auto maintenance equipment. Our main products include spray booth, drying equipment with both high and low temperature, auto lift, infrared heater, clean sanding room, decontaminating, coating and drying equipment for various types of furniture and so on.
Our company has been doing auto maintenance business for 22 years. During these years, we have always been grateful to the help and support from our widespread clients and friends in the same industry. In return, what we want to do is to bend over backwards to create the biggest profit for our clients.
