Quick Details
Description
- Place of Origin: Liaoning, China (Mainland)
- Brand Name: Taifeng
- Model Number: SCB10/SCB11
- Usage: Power
- Phase: Three
- Coil Structure: Toroidal
- Coil Number: Autotransformer

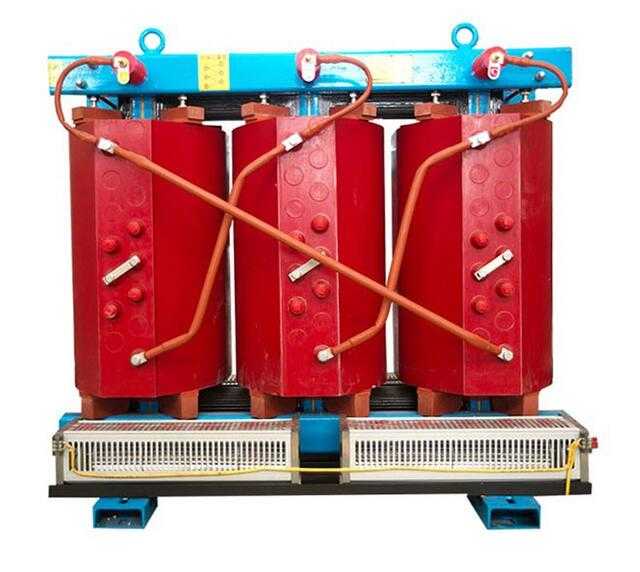

- Product name: Dry type transformer
- Certification: ISO9001:2008
- Color: Red
- High voltage (H.V.): 6/6.3/6.6/10/10.5/11kv
- Tapping range: ±5%/±2x2.5%
- Low voltage (L.V.): 0.4kv
- Size: 1100x900x1100mm~2700x1700x2900mm
- dxd1: 550x550~1475x1070mm
- Weight: 415-12000kg
- keywords: isolation transformer
Structure characteristics
1.Safety, fire protection, no pollution, can be directly run in the load center.
2.Use advanced technology, high mechanical strength, anti short circuit ability, small partial discharge, good thermal stability, high reliability, long service life.
3.Low loss, low noise, obvious energy saving effect, free maintenance.
4.Good heat dissipation performance, strong load capacity, forced air cooling can increase the capacity to run.
5.Good moisture performance, to adapt to the high humidity and other harsh environment.
6.Dry type transformer can be equipped with perfect temperature detection and protection system. The intelligent signal temperature control system can automatically detect and display the working temperature of the three-phase winding, which can automatically start and stop the fan, and has the function of warning, tripping and so on.
7.Small size, light weight, small space occupation, low installation cost.
Liaoning Taifeng Electric Co., Ltd, located in Benxi city Mingshan district Wolong industrial park, covers an area of 22800 m squared, factory building area of 15000 m squared, office area of 4000 m squared, is the production, study and research cooperation unit of Liaoning institute of science and technology, is a high and new technology enterprise specialized in electric transmission and transformation equipment research and development, manufacture.
Our company passed the ISO9001 quality management system certification, is the AAA level credit enterprise, is a credit and keep the contract unit. We're the quality and technical supervision department reputation guarantee unit, excellent enterprise in industry.
