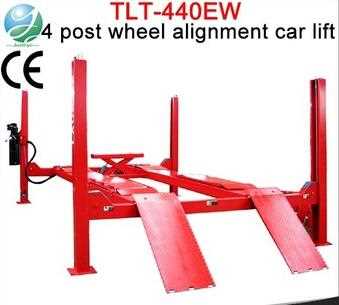

Quick Details
Description
- Design: Four Post
- Type: One Cylinder Hydraulic Lift
- Certification: CE
- Lifting Capacity: 4T 4 post car lift for sale
- Lifting Height(mm): 1900mm
- Overall Width(mm): 3445mm
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Launch 4 post car lift for sale
- Model Number: TLT440EW 4 post car lift for sale
- Warranty: 12 Months
- Rated load: 4000kg car lift
- Lifting height: 1900mm
- Initial height: 220mm
- Lifting time: less than 60s
- Lowering time: between 20s and 40s
- Motor power: 2.2kw
- Motor voltage: 3 phase/380v or Single phase phase/220v
- Secondary lifting load: 2000kg 4 post car lift for sale
- Secondary lifting height: 220-450mm
- Secondary lifting time: less than 45mm
Introduction: 4 post car lift for sale
1.Two-layer concealed plate structure, excellent synchronizing performance
with the horizontal precision of 1mm.
2.Front wheel turn plate's position is adjustable and rear wheel sliding plate is
extended for various vehicle type.
3.Widened platform of rolling jack design ,more applicable for vehicles with
different wheel track.
4.Deployed with rolling jack with small scissor electrical hydraulic lifting and
lowering.
5.Positioning level's accuracy is adjustable, distance between platforms is
adjustable, wheel base in certain scope is adjustable .
6.Driven by hydraulic cylinder , full-scope mechanical safety locking by
locking latch ,manual lowering.
7.Cable rupture safety system ,effectively protects vehicle from overturn.
8.Four connected steel cables force synchronized movement of the lift,
effectively prevent vehicles from sloping.
9.CE-STOP function with safety alarm beep would automatically warn
operators to keep safe distance from lift when it lowers to 250mm high from
ground.
10.Cylinder travel limit valve effectively protects cylinder and extends its
lifespan.
11.Emergency lowering valve can be manually operated to make lift lower
safely in case power is off.
12.Electric controlled lifting and lowering ,safe and easy operation.
The installation position of turntable and side slip plate can be moved
backwards and forwards .
13.Applicable for vehicles with different wheel base.
14.CE certificated.
Specification: 4 post car lift for sale
Platform length:915-1450mm
Platform width:215mm
Lifting time:≤ 45s
Lowering time:≥10s ≤20s
Lifting load:2000kg
Lifting height:220-450mm
Working noise:≤ 75dB(A)
Working oil pressure:16MPa
Working air pressure:0.5-0.7 MPa
