Quick Details
Description

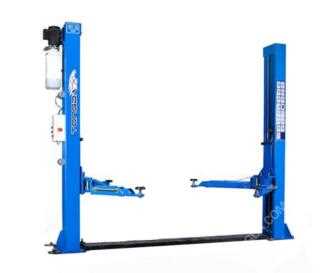

- Design: Two Post
- Type: Double Cylinder Hydraulic Lift
- Certification: CE
- Lifting Capacity: 5000kg
- Lifting Height(mm): 1850mm
- Overall Width(mm): 3470mm
- Place of Origin: Liaoning, China (Mainland)
- Brand Name: TONGDA
- Model Number: TDY-2D50E
- Warranty: 1 Years
- Product name: lifting equipment
- lift min stand height: 100-140mm
- clearance between posts: 2830mm
- height overall: 2826mm
- long arm max.length: 1390mm
- long arm min.length: 890mm
- short arm max.length: 1310mm
- short arm min.length: 740mm
- rise time: <65 sec
- descent time: <18 sec
5000KG
floorplate 2-post-auto/car lift Manually unlock
It ascents and descents smoothly.
Double safety locks Chain lifting system.
Cable synchronization.
The lift's handle release locks are on one sides, press button to up optional colors
|
Lifting capacity
|
5000kg
|
Rise time
|
≤65sec
|
|
Car max Lifting height
|
1850mm
|
Descent time
|
18sec≤t≤60sec
|
|
Clearance between posts
|
2830mm
|
Operating temperature
|
10℃/50℃
|
|
Overall height
|
2826mm
|
Net weight
|
680kg
|
|
Overall width (total)
|
3470mm
|
Power supply
|
2.2KW (380/220v) 50/60Hz
|
|
Long arm maximum length
|
1390mm
|
Oil pressure
|
16Mpa
|
|
Short arm maximum length
|
1310mm
|
Oil tank
|
10L
|
Tongda Auto Maintenance Equipment Co., Ltd. (Tongda) is located on the beautiful shore of Bohai Sea and covers an area of more than 50,000 square meters. We are a high-tech industrial company with scientific research, product developing, manufacturing, sale and after-sales service.
After 20 years' development, our company has been awarded as an "Enterprise with High Reputation", "Enterprise with High Credit in Quality", and "China National Grade AAA Enterprise". Besides, we have passed ISO9001 and CE evaluation. With ten-year's endeavor in work, today we have made great achievement. During our development, we have adhered to the soul of our company, "More difficult, more diligent and never give up". Nowadays there are more than 200 high qualified staff, and among whom more than 50 are senior managing personnel and technical elites.
We can supply 6 main series of products, more than 50 kinds of professional auto testing and maintaining equipment. We have six offices and more than two hundred sales departments all over China. Tongda has become one of the leading pioneers in this field. Based in Yingkou, facing the country and connecting with the world, Tongda has been developing more and more new products continuously with the concept "Fine equipments, professional technology and sincere after-sales service".
The newly developed products (more than 20 models), such as tire changers, wheel balancers, vulcanizers, lifts, pneumatic tire expanders and alignments, have not only brought quite much profit for our customers, but also gained countless praise and recognition for us. With the huge distribution system spreading in 30 provinces, cities and areas all over China, Tongda's products have been exported to more than 30 countries and areas, such as the USA, Germany, Japan, Russia, Australia and countries in the Middle East and Africa.
Facing the future opportunities and challenges, Tongda will be still adhering to "Seeking higher and being practical", try to enlarge the intercourses and cooperation with other producers in this field both at home and abroad, and exert ourselves to pay back our clients with high-quality products and perfect after-sales service.
We are dedicated to build the most perfect purchasing platform in China's Auto Maintenance and Equipment industry.
