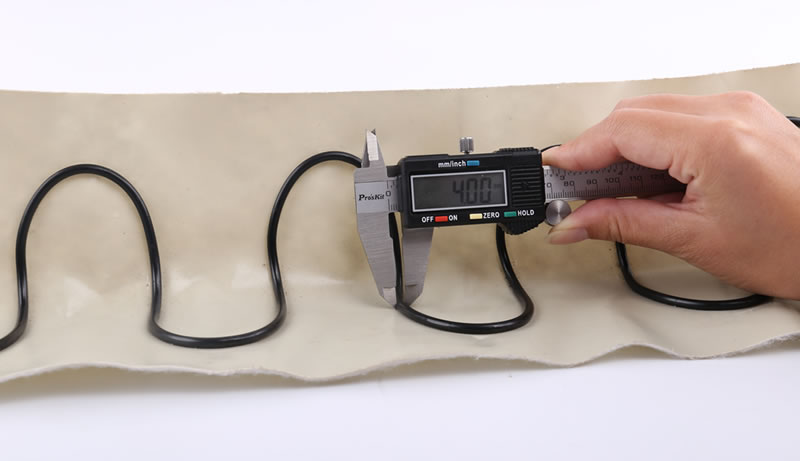

Spring semicircle tube

Spring semicircle tube, also known as soft semicircle pipe, semicircle drainpipe, omega type soft semicircle drainpipe, it is specially used for tunnel application.

Spring semicircle pipe applies in tunnel non pressure drainage and ensures the tunnel inner structure permanent drainage unblocked, so as to make the tunnel lining structure of peripheral become no water pressure environment and ensure the tunnel no water leakage in using period. With acid and alkali resistance, penetration, soft and elastic, arbitrary bending, it is able to adapt to the surrounding gradually deformation characteristics. It can adapt to uneven surface of surrounding rock and fracture shape, avoid rock direct inflow of sediment caused by the blockage, withstand jet concrete impact without damage, no deformation. And it can eliminate the effect of tunnel external water pressure, improve lining structure stress condition.

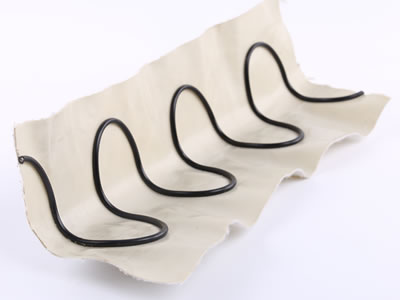

Structure of spring semicircle pipe
Spring semicircle drainpipe is spring wire through plated plastic anti rust treatment, coated with PVC coating outside and with composite geomembrane to thermal bonding, finally, process into spring semicircle drainpipe. The product is applied in the construction of highway, railway and tunnel seepage prevention and drainage engineering. This is in order to avoid the external water pressure of the tunnel, reduce the bearing capacity of the arch wall for tunnel and make drainage flow. The outside of the tunnel lining structure is a no water pressure environment, which ensures the tunnel does not leak during the service period.
Specifications:

Product name: spring semicircle tube.
Material: high carbon steel wire, non woven filter layer, high strength polyester fiber.
Surface treatment: PVC coated.
Commonly used sizes:
Type: 50 mm, 80 mm, 100 mm.
Height: 25-40 mm, 45-50 mm, 55-60 mm.
Composite geotextile thickness: 1 mm. (allowable deviation ± 0.5 mm)
Packaging: Each one is 20 m, 100 m or 5 pieces in one bag.
Features:

This kind of buried drainage pipe, layered and batched buried, can adapt to the characteristics of surrounding rock gradually deformation.
Avoid the surrounding rock sand directly into the drain pipe that caused blockage.
Because the "drainage unobstructed" eliminates the effect of external water pressure, it improves the stress state of lining structure, and reduces the production of cracks.
Because of the deep buried in the interior of the tunnel lining, it can effectively prevent freezing in the drainage pipe and frost heaving damage to its structure in general cold area.
Due to the vertical setting of buried drainage pipe, the water flow in pipe is large. The general water discharge of each drainage pipe is not less than 50 m/h, which can adapt to various geological conditions of groundwater discharge.

Our company is a professional sales enterprise that has been committed to the manufacture of geomembrane liners, geotextile fabrics, geogrids, geocell, spring semicircle tube and many other geotechnical materials products. And we also produce a variety of materials, specifications of products. In these years we have always been provided a preferential price, timely delivery and quality of services to our customers. With the most advanced technology, professional engineering technical staff, modern production and testing equipment. We can offer you various types cost-effective products. At the same time, we are willing to help you assist in exploring market. Looking forward to cooperating with all the customers at home and abroad.

Eight advantages to choose our company:
No.1Premium raw materialsOur raw materials are all from well-known domestic manufacturers.
No.2Rich experience in productionOur company has over ten years production experience.
No.3Senior technical staffOur technical staff all have more than 10 years working experience.
No.4Advanced production equipmentRecently we have purchased a number of the most advanced production equipment and testing equipment.
No.5Offer various types productsOur waterproof geotechnical materials products have a variety of specifications of geotextile fabrics, geomembrane, geogrids, geocells, etc.
No.6Provide a variety of programsPre sales to provide you with various schemes for choice.
No.7Quick in sale service.Prepare the most suitable products, the fastest logistics transportation for you in the sale process.
No.8Thoughtful after-sales serviceExpert technical guidance one-on-one, make our customers without worries.
Nowadays, with rapid economic development, the reason our company can be able to stand on geotechnical materials industry is because we have been in constantly innovation and development. Our company can not only through the needs of each customer to provide innovative and cost-effective solutions, but also provide excellent products and premium services. Through years of development, our company has established a good reputation. Our customers not only have all over the country, but also have a number of products that have been exported to more than one country.

Whether you need any of our products, or a solution, or have any suggestions about our products , please call us or contact us online. Our professional staff can speak fluent English and can solve your problems patiently. We will provide you with intimate pre-sale, sale, and after-sales service. The staff members of our company cordially welcome the new and old customers from home and abroad to make the discussion and guidance!
