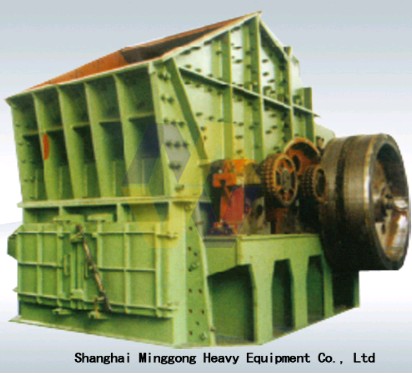

Single stage Hammer Crusher
Hammer Crusher is widely used for medium or fine crushing for medium hard and brittle materials by departments of mine, cement, coal, building material, metallurgy, chemical industry, road construction, gas chemical industry and thermal power generation, etc.
Quick Details
Description
|
Model
|
Max feed size(mm)
|
Rotor diameter mm
|
Rotor Length mm
|
Residual on the screen ≤15%
|
output (t/h)
|
Power(kw)
|
Weight (t)
( not include motor)
|
|
PCF-1412
|
600×600×900
|
1420
|
1200
|
≤25
|
80-120
|
220
|
23.5
|
|
PCF-1616
|
800×800×1000
|
1650
|
1630
|
≤25
|
180-220
|
315-355
|
43.3
|
|
PCF-1616 Ⅱ
|
|
|
|
|
|
|
|
|
PCF-1618
|
≤ 1m 3
|
1650
|
1830
|
≤25
|
240-280
|
400
|
49.5
|
|
PCF-1818
|
900×900×1000
|
1850
|
1830
|
≤25
|
300-350
|
560
|
70
|
|
PCF-2018
|
<1m 3
|
2020
|
1802
|
≤25
|
350-500
|
630-710
|
89
|
|
PCF-2018 Ⅱ
|
1000×1000×1000
|
|
|
≤25-75
|
350-450
|
630-700
|
|
|
PCF-2022
|
1000×1000×1500
|
2010
|
2230
|
≤30占90%
|
600-800
|
800
|
111
|
|
PCF-2022 Ⅱ
|
1000×1000×1500
|
2010
|
2230
|
≤70占90%
|
600-800
|
800
|
130
|
|
PCF-2022 Ⅲ
|
1000×1000×1500
|
|
|
≤80占90%
|
700-800
|
800
|
|
|
2PCF-1818
|
1000×1200×1500
|
1850
|
1830
|
≤75
|
1000
|
560
|
119
|
|
2PCF-2030
|
1000×1000×1500
|
2020
|
2230
|
≤25
|
700-900
|
800×2
|
142
|
Hammer Crusher is widely used for medium or fine crushing for medium hard and brittle materials by departments of mine, cement, coal, building material, metallurgy, chemical industry, road construction, gas chemical industry and thermal power generation, etc. Coal gangue, coke, slag, limestone, phosphate rock, salt, whiting, gypsum stains, alum, brick and tile, etc. can be crushed by this equipment.
The compression strength of the materials shall not exceed 100MPa, while the moisture content shall be lower than 15%. The equipment can be also used for crushing chips and paper with fiber structure and strong elasticity and ductility, or recycling asbestos fiber by crushing wastes of asbestos cement, etc. Gap between the gratings are adjustable to change grain size of the discharge, so as to meet different requirements of the customers.
Shanghai Minggong Heavy Equipment Co., Ltd. is a manufacturer specialized in large and medium-sized mining machinery, metallurgical machinery and building material equipment R & D, production and marketing. In 2005, our company bought 40000 square meters of land in Shanghai Jiading Malu High-Tech Park and built a factory of 18000 square meters, with assets of RMB 15 million and more than 400 employees. Our firm has a scientific research group with 70 technologists and 20 senior engineers. 15 years of experience ensures a well-trained riveter and welder team. Our company has long-term cooperation with many research institutions in China and abroad, bringing in advanced technology of the world.
The products include large-sized ball mills, large-sized rotary kilns, rotary dryers, complete cement plants, jaw crushers, impact crushers, sand makers (vertical shaft impact crushers), feeders, vibrating screens, sand washing machines, belt conveyors and others, totally over one hundred models. These machines are widely used in mining, chemistry, metallurgy, construction material, coal and refractory material industries. The products have passed ISO9001:2000 international quality certification and CE quality certification. Our quality policy is 'Quality first, reputation first, customer first'. The products have been sold to Russia, Japan, Australia, Uzbekistan, Korea, Myanmar, Indonesia, Iran, Chile, Mali, Guinea, Tanzania, Nigeria, the Philippines, Bangladesh and Cuba.
Our company emphasizes fundamental management, has an enterprise management system and carries out position management & ABC management. The production technology is managed by computers. For product development, our firm adopts CAD / CAPP technology. Our company keeps developing new products, investing in technical innovation and improving product quality, to meet different needs of customers.
