Quick Details
Parameter
Brand : JLNE
Original : Jiangsu,China
Model : SZLH420
Capacity : 10-15t/h
Power : 110kw
Ring die : 420mm
Design : 1-2layers conditioner
Leadtime : 15working days
Guarantee : 2years
Approved : CE
Description
SZLH420 Poultry feed pellet mill
JLNE is reliable manufacturer with own factory lcoated in Liyang city,Jiangsu province,China.We are engaged in feed pellet machine and biomass pellet machine and pellet line projects over years.Our machines found home in more than 30countries,all of them get super good feedback from cilents.
Feed pellet machine is using all kind of agricultrual products like wheat/maize/grain/bean and other materials to make feed pellet for poultry or animal or aquatic livestock.the final product of pellet is in 1~8mm diameter.
Generally,our feed pellet machine has below advantages:
1. Main drive adopts high accurate gear drive, with an output of about 20% higher than belt drive, and the die adopts the quick removing clamps.
2. The drive part of the machine including motor optimize the high quality world famous bearings, which ensure high efficient and steady driving with low noise.
3. The imperative feeder device is adopted, which making the machine operate smoothly as the material like wood sawdust, rice straw is very light, so they are needed to be pushed into pelletizing chamber by force.
4. The feeder adopts the frequency-conversion speed regulating control to guarantee the quality of wood pellet.
5. The alloy steel die is made by international advanced German gun drill and American vacuum furnace, has long service life and ensure smoothly pelletizing and high quality.
6. The international advanced compensation type flexible coupling is of novel and compact structure, safety, low noise and less trouble.
7. Permanent magnet device can remove impurities in the pelletizing process.
The best selling models of feed pellet machine are mainly these:
1.model SZLH320,power 37kw,capacity 1~3t/h
2.model SZLH350,power 55kg,capacity 3~5t/h
3.model SZLH400,power 75kw,capacity 5~8t/h
4.model SZLH400,power 110kw,capacity 10~15t/h
5.model SZLH508,power 132kw,capacity 15~20t/h

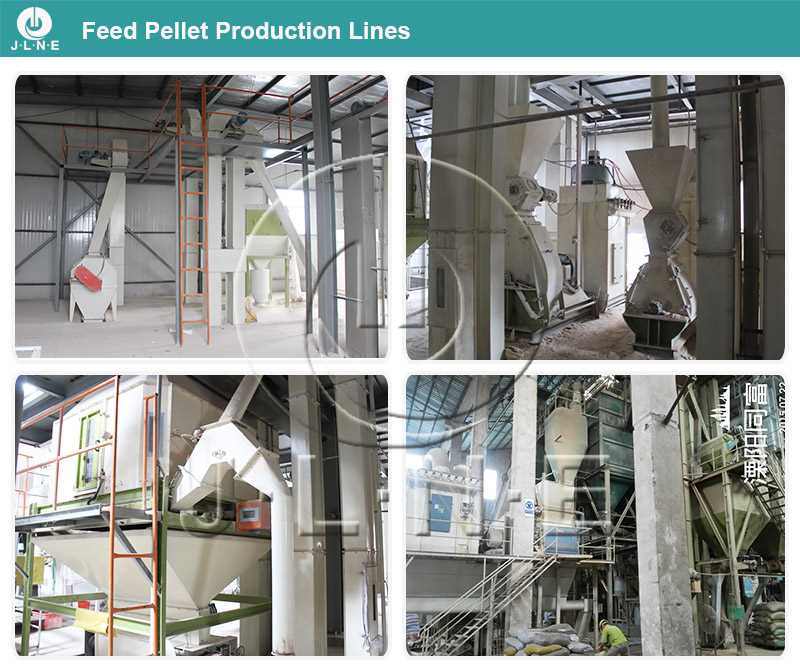

We provide complete feed pellet line,and feed pellet machine is just part of it,the relevate products are:
As the leader of pellet machinery company,our pellet line in China are welcome for your visit at any time,if want more information,pls visit our website (www.bestpelletmachinery.com ) or contact Angel at 008617327981073.
Jiangsu Jingliang New Energy Co,ltd.short as JLNE,with own factory located in Liyang city, Jiangsu province of China, which was known as Birth-place of ring die pellet machine.
JLNE is the leader of biomass pellet machine & feed pellet machine in China, has passed the national quality management system Certification, the European CE certification, SGS certification. With more than 15 years experience, numerous pellet lines are installed in over 27 regions and countries such as Europe, North America, South America and Southeast Asia, etc. And control around 50% of Chinese market in pellet line industry.
JLNE main products are pellet machine, feed and wood pellet line. We have advanced CNC laser cutting machine, CNC lathes, large-scale shear bending equipment, CNC punch, drilling, Boring machine, machining center and cutting plate, bending, welding and other processing equipment, to carry out all kinds of precision machinery manufacturing.
With strong technology support, advanced processing equipment, exquisite processing craft and strict testing and examining standards, JLNE is constantly dedicated to improving technologies and serving our clients with the best customized projects.
Clients' satisfaction is our utmost objective.JLNE hopes to be your satisfied business partner in the future!
