Quick Details
Description
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: LDG
- Model Number: SJG1-1
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 2.2kw
- Rated Loading Capacity: 1000kg
- Min. Lifting Height: 330
- Max. Lifting Height: 1330
- Table Size: 1700*755
- Overall Dimensions: 1700*755
- Weight: 450KG
- Certification: ISO9001
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Name: Stationary hydraulic sissors lifting table
- Voltage: Local Voltage
- Keywords: lifting table
- Application: Warehouse,production
- Overload protection: Included
- Work traveling limit switch: Included
- Emergency stop system: Included
- Main Material: Steel
- Color: standard or as your requirment
- Control methods: Electronic Control

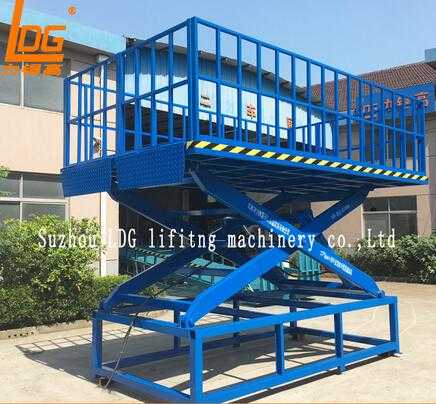

--- Stationary hydraulic scissors lift table is mainly used to convey goods in workshop, warehouse, underground garage storage etc.
--- The control panels are available on the designated floors and the lift platform.
--- It works through three buttons( up, down and stop)on the control panels.
--- Sensitive overload protection devices is included for failing protection.
--- Rated load, platform size and lifting height, can be customized according to your requirement.
|
NO
|
Model
|
Rated load (KG)
|
MIN. Height
H1(mm)
|
Lift Stroke
H3 (mm)
|
Table size L1*W1 (mm*mm)
|
Power (KW)
|
Equipment weight (KG)
|
|
1
|
SJG0.5-1
|
500
|
260MM
|
1000
|
2520*1900
|
1.5
|
380
|
|
2
|
SJG0.5-1 D
|
500
|
260
|
1000
|
5000*1510
|
2.2
|
600
|
|
3
|
SJG0.3-0.5 D
|
300
|
260
|
500
|
3000*3000
|
2.2
|
500
|
|
4
|
SJG0.3-1.6
|
300
|
350
|
1600
|
1700*1510
|
1.5
|
400
|
|
5
|
SJG1-1
|
1000
|
330
|
1000
|
1700*755
|
2.2
|
450
|
|
6
|
SJG2-2.5
|
2000
|
540
|
2500
|
2000*1510
|
3
|
700
|
|
7
|
SJG2.65-1
|
2650
|
340
|
1000
|
1680*1060
|
3
|
760
|
|
8
|
SJG5-1.5
|
5000
|
620
|
1500
|
1700*1060
|
4
|
2000
|
|
9
|
SJG10-4
|
10000
|
920
|
4000
|
3500*2120
|
7.5
|
4500
|
|
10
|
SJG20-0.8 D
|
20000
|
930
|
800
|
5000*2120
|
11
|
4800
|
|
11
|
SJG20-2
|
20000
|
960
|
2000
|
3500*2120
|
11
|
6000
|
Suzhou LDG Lifting Machinery Co., Ltd (below will be name to LDG) is a professional factory in design and manufacturing for lifting machinery. We are mainly dedicated in own design, R&D, selling and after-sales service. LDG is located in Suzhou city, where is nearby Shanghai, it's very convenient for the delivery.
Our main products include, scissor aerial work lift platform, hydraulic lift table, hydraulic cargo lift platform, mobile dock ramp, stationary dock leveler etc. LDG have got the license of special equipments manufacturer of China (this license is with very strict quality audit to be honored), ISO certificated enterprise, also are in processing of CE certificate.
We strictly control the whole process from raw material incoming inspection to shipment. We always pay attention to listen to our clients' voice and keep on improving in details. It makes us a big progress in production, design, goods surface and function etc. We got good feedback from our clients on product quality and service.
