Quick Details
Description
- Model NO.: SJG SERIES
- Specification: JB/T9229.1-1999

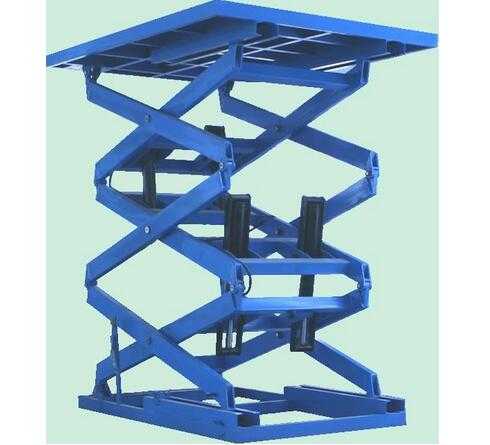

Stationary hydraulic cargo lift is a kind of special hydraulic lifting platform product for goods transporting between buildings. It is mainly used for goods up and down transporting in all work layers, auto lifting in solid garage and underground garage. Hydraulic pressure system is equipped with anti-dropping, overloading safety protector; Each floor and lifting platform all may be set operation button to realize multi-point control. The product has the advantages of firm structure, big carrying capacity, stable lifting, simple and convenient installation and maintenance, an ideal goods transporting equipment in economical and applied low floor to substitute lift.
Choose different optional configuration according to fixing condition and requirement to get better effect.
|
Stationary hydraulic cargo lift (double-scissor)
|
|
Model
|
Rated load(t)
|
Min. height(mm)
|
Lifting distance(mm)
|
Max. height( mm)
|
Size of platform(mm)
|
Lifting time(s)
|
Motor power(kw)
|
Total weight(kg)
|
|
SJG 4.5-3.5
|
4.50
|
780
|
3500
|
4260
|
4000×2000
|
50
|
5.5
|
4500
|
|
SJG 2-4.8
|
2.00
|
700
|
4800
|
5500
|
3600×2000
|
40
|
11
|
3800
|
|
SJG 5-5.4
|
5.00
|
950
|
56400
|
6350
|
5000×1600
|
87
|
7.5
|
6000
|
|
SJG 3-7.2
|
3.00
|
860
|
7200
|
8060
|
5500×3000
|
90
|
11
|
8870
|
|
Stationary hydraulic cargo lift (multi-scissor)
|
|
Model
|
Rated load(t)
|
Min. height(mm)
|
Lifting distance(mm)
|
Max. height( mm)
|
Size of platform(mm)
|
Lifting time(s)
|
Motor power(kw)
|
Total weight(kg)
|
|
SJG 0.5-5
|
0.5
|
850
|
5000
|
5850
|
2000×1000
|
47
|
2.2
|
1200
|
|
SJG 1-3.3
|
1.00
|
840
|
3300
|
4140
|
1900×1500
|
30
|
3
|
1300
|
|
SJG 1-4.3
|
1.00
|
860
|
4300
|
5160
|
2500×2500
|
70
|
1.5
|
2500
|
|
SJG 1-6
|
1.00
|
1230
|
6000
|
7230
|
2200×1500
|
90
|
2.2
|
2500
|
|
SJG 2-3.5
|
2.00
|
1000
|
3500
|
4500
|
2200×1500
|
75
|
2.2
|
1800
|
|
SJG 2-4.5
|
2.00
|
1070
|
4500
|
5570
|
1600×1600
|
45
|
4
|
2200
|
|
SJG 2-6.8
|
2.00
|
1400
|
6800
|
8200
|
2500×2200
|
90
|
4
|
3300
|
|
SJG 3-4.5
|
3.00
|
1060
|
4500
|
5560
|
2200×1800
|
88
|
4
|
2200
|
Shenxi Machinery Co., Ltd., established in 1988, is one of the leading manufacturers of suspended access equipment in China.
We are dedicated to designing and manufacturing a wide range of suspended access equipment, including suspended platform ( also called powered cradle, gondola and swing stage), building hoist, mast climbing work platform, aerial work platform, electric hoist, etc.
Our products are used for temporary, flexible access purposes, including glass/marble curtain wall, plastering and painting, facade working, building insulating layer, glass cleaning, elevator installing and transportation of materials and passengers etc.
Shenxi has over 20 years experience in manufacturing the above products, which feature excellent design, quality, and reliability, at competitive prices.
Shenxi knows clearly that quality is life of a company. In order to provide good products, we employ experienced technicians, import advanced equipment and implement strict quality control. In the entire manufacturing process, we strictly comply with the ISO9001: 2000 certification, to ensure our quality. Thus, our products have been approved by CE certificate, GOST-R for Russia and Ukraine, SII, License of Malaysia and Singapore, etc.
We have began our export business since 2005 and occupied great oversea markets. We have exported to more than 50 countries and cooperated with some world famous companies.
We are located at Wuxi city, 2 hours by car to Shanghai, which offers us access to convenient transportation by sea, land or air. Therefore, you needn't worry about your international transportation cost.
Shenxi warmly welcomes you to choose our prodcuts. If you have any questions, feel free to contact us! We are glad to deliver innovative solutions and excellent service to our customers.
