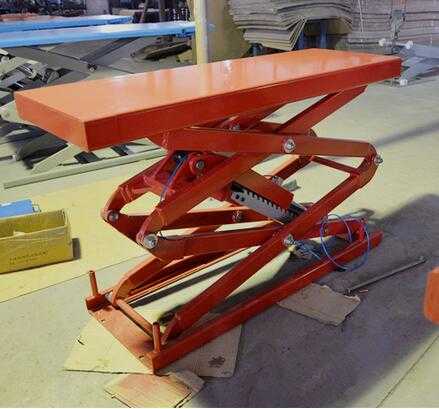

Quick Details
Description
- Model NO.: SHL-Y-J-32C
- Lifting Capacity: 3.2t
- Certification: CE, ISO
- Double Cylinder Lift Type: Planer-type
- Condition: New
- Design: Scissor
- Main Lifting Capacity: 3200kg
- Lifting Max. Height: 1990mm
- The Platform Width: 565mm
- Power: 110-380V, 50Hz
- X Steel: Square Steel Type
- Transport Package: Export Standard Package
- Origin: Guangzhou, Guangdong
- Type: Double Cylinder Hydraulic Lift
- Driving Type: Hydraulic
- Driving Motor Number of Mechanical Lift: 1
- Shearing Lift Type: Small Shear Type
- Brand: Shunli
- Motor: 3kw
- Clour: Grey, Blue, Red Optional
- Platform Length: 1460-2030mm
- Initial Height: 330mm
- Air Pressure: 0.4-0.6MPa
- Trademark: SHUNLI
- Specification: CE. ISO, SGS
- HS Code: 8425429000
Product Specification
1.24V safely control circuit
2.Shot blasting and high temperature baking powder coated surface finish;
3.Mechanical safety locking with features of automatic engagement and pneumatic release;
4.The length of platform is adjustable.
5.Oil cylinder built-in explosion-proof device;
6.Wear-resisting bearings
7.Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
8.Main hydraulic parts imported from Japan, Germany. High-quality, stable, safe and reliable
Technical parameter
|
Model
|
SHL-Y-J-32C
|
|
Lifting Capacity
|
3200kg
|
|
Lifting Max. Height
|
1990mm
|
|
The Platform Length
|
1460-2030MM
|
|
The Platform Width
|
565mm
|
|
Initial Height
|
330mm
|
|
Motor
|
3kw
|
|
Power
|
220V, 380V
|
|
Air Pressure
|
0.4-0.6mpa
|
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
