Quick Details
Description
- Brand Name:
-
CCI
- Model Number:SHD01-120

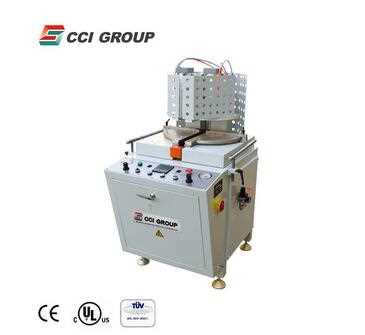

- Product name:single head upvc window welding machine
- Usage:Single Head Welding Machine
- Control System:OMRON
- Welding Angle Scope:30°~180°
- Power supply:380V 50Hz
- Single Head Welding Height:20-120mm
- Single Head Welding Max. Width:120mm
- Air pressure:0.5-0.8 MPa
- Overall Dimension:960mmx900mmx1460mm
- Weight:260kg
Function:
SHD01-120 is the single head variable angle welding machine for making upvc window door, which angle ranging from 30°~180°.
Special for welding arc window and other special windows.
It features Omron PLC control, SMC/ EASUN pneumatic driving and Schneider/ CHNT Electric Parts.
Reliable function, simple operation and convenient maintenance.
This upvc window making machine is suitable for arch window and speical angle window door.
Technical Parameters
|
Series No.
|
Technical Item
|
Techncial Parameters
|
|
1
|
Power Supply
|
220V 50Hz
|
|
2
|
Power Rate
|
1.2Kw
|
|
3
|
Welding Pressure
|
0.6-0.8Mpa
|
|
4
|
Welding Width
|
120mm
|
|
5
|
Welding Height
|
20-120mm
|
|
6
|
Over Dimension
|
960*900*1460mm
|
|
7
|
Total Weight
|
260Kg
|
As a path breaker in windoor machines of China, CCI Group Machine creates and develops the brand-new high quality window machines and Insulating Glass Machines with 23 years hard working. Our aim is the best windoor machines and insulating glass machines manufuctuer from China.
Attaching much importance to quality and taking management and technology development as the impetus, CCI Group tacks the culture of operation excellence, and has obtained ISO9001-2000 edition and CE Qualification successively. So far CCI Group has more than thirty offices around China, and has built many a foreign office, such as in Canada, Kazakstan etc.
Now CCI Group has become the all-around equipment manufacturer, producing more than one hundred products, and is mainly engaged in four series of equipment processing PVC windoor, top grade aluminum windoor and curtain wall, insulating glass and iron-PVC win door.
We would like to expand our cordial cooperation with you for better future.
