Quick Details
Description
Technical Parameters：
Output(Max): (Errect Cutting) (PCS:75g) 12000 piece/hour
(6-fillers) (PCS:75g) 12000 piece/hour
Working Principle:

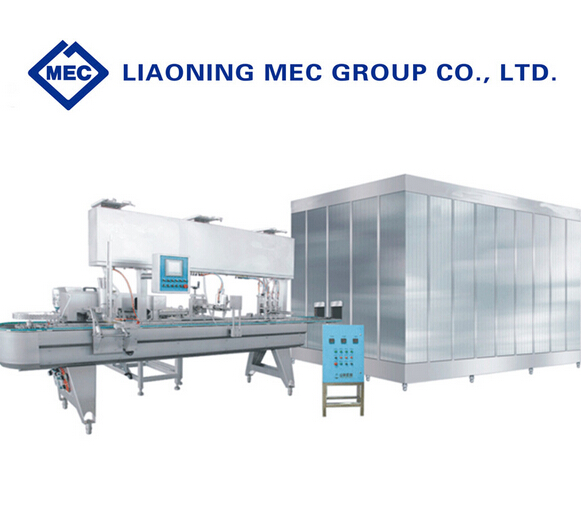

A standard SD800B ice cream extrusion line is composed of a reciprocating product tray transmission system and an instant freezing storage. The inlet/outlet of product is set at the front of the instant freezing storage and connected to the work platform, forming a circular transmission system. A standard station frame is installed on the work platform to extrude, fill and decorate ice creams. Inside the instant freezing storage, the transmission chain twists on two sets of parallel stainless steel frames.
As the first working procedure, the production line extrude the raw materials of ice creams to the product trays (such as rod-plugged product, slice product or little cake), or it fill the raw materials of ice creams into the pre-distributed cones. Different operating units are used for different products such as rod-plugging device, biscuit distributing device, chewing gum distributing device, ball-shaped cone filling, surface decorated ice cream, caramel, juice, jam or dried fruit. Then, the trays with products pass the instant freezing tunnel and are frozen by circulate cooling air. After the ice cream products are frozen, the mechanical hand will take the products away from the trays and soak in chocolate and pack the products.
Nanjing puyuan ice cream machinery manufacturing company located in the Nanjing national high technology development zone, adjacent to the third bridge , and only 333km away on the 312 national highway , one of the main transportation channels in china. With its excellent geography position, it enjoys a very convenient transporation. The company engaged in manufacturing a series of frozen foods machines, and which have widely distributed throughout China and well sold to New Zealand, Russia, Pakistan, Iraq, Vietnam, etc.
Puyuan had 20 years experience on the machinery business, that always be famous by supplying the ice cream production line quick freezing device and filling machine, we also have a high technology level.
