Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage, Food
- Packaging Type: CUPS
- Packaging Material: Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: AC220V/380V
- Power: 4.5KW
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: ShouDa
- Model Number: SD-4EY
- Dimension(L*W*H): 3500*850*1600
- Weight: 1000kg
- Certification: CE Certificate
- After-sales Service Provided: Engineers available to service machinery overseas

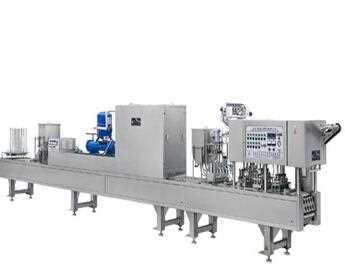

- Name: popcorn filling and sealing machine
- Function: Filling and sealing
- Processing Types: linear type
1) A fully automatic
For our machine:
1, Automatic falling cups
2, Automatic filling fruit slurry
3, Automatic filling base yoghurt and liquid flavoring
4, Automatic falling pre-cut films
5, Automatic sealing pre-cut film (twice)
6, Automatic discharging cups
2) linear machine
Yes, linear type, 4 lanes. The machine need 2~3 workers, one worker put cups, another worker put pre-cut films.
3) 4 lanes wide
Yes
4) Stainless steel construction to include the frame (IE no mild / carbon steel)
For the whole machine, we use ss304 and ss316. Machine’s frame use SS304, and material contacting part uses SS316. Not contain with mild or carbon steel. The thickness of stainless steel, for whole machine is equal 2 mm. The specific thickness will be confirmed according to the actual production.
5) plexiglass covers / shields are acceptable)
We use organic glass for whole machine as a dust cover.
6) 2 product addition points per lane
a. First addition is up to 2 oz fruit filling (slurry)
b. Second addition is up to 6 oz yogurt
c. Fill temperature is between 40 F to 100 F
d. Filler amount needs to be adjustable (simple and accurate)
There are two hoppers installed on the machine. One Mitsubishi servo motor for one hopper, 2 sets servo motors in total.
The first hopper with 4 partitions, single layer hopper, ss316material, Inner design is smooth with high quality and high quality of polishing is demanded; material loading and unloading fast, easy cleaning.
