Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: QBE
- Model Number: SCB10
- Usage: Power
- Phase: Three
- Coil Structure: Toroidal
- Coil Number: Autotransformer
- certificate: CQC,CCC
- Cooling method: ONAN
- Rated capacity: 30KVA-20000KVA
- Brand: QBE
- Input voltage: 6KV-35KV
- Output voltage: 0.4kv
- Material: Copper Winding
- Frequency: 50/60Hz
- Impedance Voltage (%): 4%, 4.5%
- High voltage tapping rang: ±5% or ±2x2.5%
(1)IEC60076,ISO,CCC,Type test report
(2)Top 3 and more than 23 Years' experience
(3)Sold to Malaysia,HK,Ethiopia, Mozambique, Kenya, Congo, Philippines,Nigeria,HK......and so on
|
Product Name
|

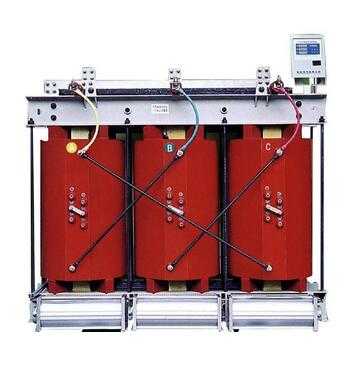

SCB10 three phase case resin dry type distribution transformer
|
|
High voltage tapping rang
|
±5% or ±2x2.5%
|
|
High voltage
|
6KV TO 35KV
|
|
Low voltage
|
0.4KV
|
|
certificate
|
IEC60076,ISO,CCC,Type test report
|
|
Impedance Voltage (%)
|
4%, 4.5%
|
|
Capacity
|
30-20000kva
|
|
Connection symbol
|
Yyno or Dyn11 or customized by request
|
|
1. Uses the high quality the product core orientation material for cold rolled silicon-steel sheet, the core of no-load performance is greatly improved.
2. The product of resin permeability good, no bubble, thus bureau in small volumes.
3. The characteristic of moisture proof, can be in the safe operation of the 100% humidity.
|
Quzhou Hangyong Transformer Co., Ltd. (kown as QBE brand), predecessor Quzhou Transformer Factory which was founded in 1967, has 50-year's professional experience and technology accumulation in electrical transformer industry. Through half a century development, now the annual production capacity over 6,000,000kva, sales revenue around 1 billion RMB, the company has more than 300 workers and manufacturing plant 75,000 square meters.
We are technology motivated manufacturer since first established, which makes us China National High-tech Enterprise, and we have established own provincial-grade enterprise technology center and R&D center. By far, our company achieved 16 patents and two Science and Technology Progress Awards. Our company developed a series of new products which are highly admirable in Chinese transformer industry, and are included in the national promotion catalog of energy-saving products and people-benefit products of China.
Currently our main market is in China, but we are dedicated to promote our products to global market, and we would appreciate any customers and friends to cooperate for the same direction.
