Quick Details
Description
- Place of Origin: Hebei, China (Mainland)
- Brand Name: Tianwei
- Model Number: S11
- Usage: Power
- Phase: Three
- Coil Structure: Toroidal
- Coil Number: Three
- Certification: CQC
- Brand name: Tianwei
- Standard: IEC60076/GB1094-1996
- Type: oil immersed electrical transformer
- Rated capacity: 30KVA-1600KVA
- Frequency: 50Hz/60Hz
- Color: Grey
- Rated voltage: 6KV±2*2.5% 10kv±2*2.5%
- Material: 100% Copper Wire
- Size: Customized
Summary

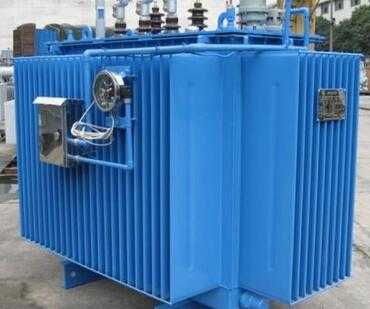

The three-phase oil-immersed distribution transformer applies new type insulating structure and makes short-circuit resistance strong. The iron core is made of high-quality cold-rolled silicon-steel plate. High voltage winding group is made up of high quality oxygenfree copper lines and it adopts multilayered
drum type structure. All fasteners have been processed with special treatment to prevent them from loosening
Reliable Structure
Spiral loops with longitudinal oil path to produce a better interior cooling effect; Improve the effectual support of the loop’s terminal face to strengthen the anti-short circuit electricity capability; New suspending structure and instrument-positioning frames to guarantee that the long distance transport and movement will be more reliable.
Excellent Materials
Oxygen-free copper lines of lower resistivity, which will become smoother and burr-free after series of additional surface treatment, so the load loss of our transformer is lower and the electric performance is better.
High-quality silicon-steel plates which are of lower unit loss, and the no-load of the transformers is lower.
High-quality wooden laminating insulation pieces, which won’t split or move even under the influence of short circuit.Thoroughly filtrated transformer oil containing less water, gas and impurities, which makes our transformers work better.High quality rubber sealing material, which can prevent the transformers form aging or
leakage.
Transformer Service Condition
Altitude cannot exceed: 1000m
Highest ambient temperature: +40°C
Highest daily average temperature: +30°C
Highest annual average temperature: +20°C
Lowest outdoor temperature: -25°C
1
We have high quality transformer. We are the partner of Tianwei, which is one of the biggest and most advanced transformers manufactures. We can provide oil and dry type transformer. All of them can be customized.
We have a profession team. Our team was composed by 40 people. More than 50% are accounted for bachelor degree and above.
We have convenient conditions in transportation. Our company is located in the south of Beijing. And we also near to Tianjin port.
We will adjust the performance and structure of the products according to the needs of customers, and try our best to meet customers.
We respected the value of "integrity, attention, modest, sharing view",pursuit of the supremacy of customers,care staff,share the successful experience.
