Quick Details
Description
Structure:

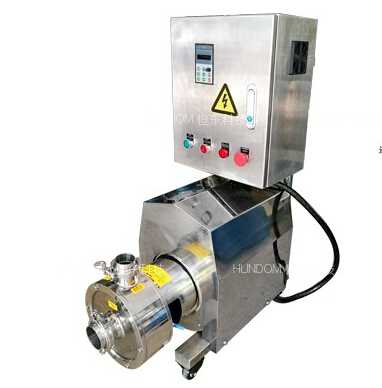

Pipeline high shear dispersing emulsion pump is a high performance equipment used for continuou production circulated treatment of fine material.
In the small chamber there are 1-3 sets of paired and clutched stators and rotor.
Driven by motor, the rotor revolve quickly and produces a strong axial suction force which intakes the material to the chamber.
The machine disperses, shears and emulsifiers the material in shortest time, and the diameter range of the particles gets smaller so that fine and stable produced.
Reference Parameter
a. Power Supply: 110-480V, 50/60Hz.
b. Seal: Dual End Mechanical Seal ( Pressure Balance Device is optional.)
c. Materials: SS304 or SS316L.
d. Speed: 0-2900 rpm (Frequency Converter Control can be choose)
e. Flux: 0-130T/H
f. Outlet Pressure:≤0.2 MPa.
g. Pipeline Connection: Flange, Quick-connection or Screw
h. Package: Standard Exported Package (plywood case).
