Quick Details
Description

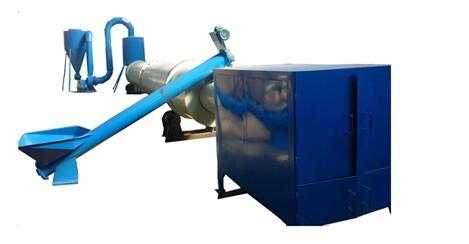

Our rotary dryer is mainly made up of a rotary body, raw material feeding plate, driving and supporting device, etc.
Materials that have moisture are thrown into the rotary cylinder through the raw material feeding plate which is arranged reasonably with changeable angles. Hot air-flow is then used to separate water from the materials in order to dry them. The water is changed into vapor and discharged into the atmosphere.
Technical parameter:
|
Model
|
GT630
|
GT800
|
GT1000
|
GT1200
|
GT1500
|
|
Capacity kg/h
|
600-800
|
800-1000
|
1200-1500
|
1500-2000
|
2000-2500
|
|
Main Power
|
5.5kw
|
7.5kw
|
7.5kw
|
11kw
|
15kw
|
|
Air lock power
|
1.1kw
|
1.5kw
|
2.2kw
|
2.2kw
|
2.2kw
|
|
Weight
|
2600kg
|
2800kg
|
3800kg
|
4500kg
|
5000kg
|
|
Diameter of roller
|
630mm
|
800mm
|
1m
|
1.2m
|
1.5m
|
|
Length of roller
|
9m
|
10m
|
10m
|
12m
|
12m
|
|
Total length
|
9+4m
|
10+5m
|
10+5m
|
12+6
|
12+8m
|
|
Wood waste consumption
|
15-20kg/h
|
20-25kg/h
|
30-40kg/h
|
40-50kg/h
|
50-60kg/h
|
|
Moisture
|
From 40-70% to 8-12%
|
Gongyi Xiaoyi Mingyang Machinery Plant is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.
After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and world market, and also exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam, etc.
Why the client choose us,because :
1. one of the largest manufactures of the briquette machine in China
2.the earliest manufacture of the briquette machine in China with 20 years experience,
3. get the ISO certificate and SGS certificate
4.We have the test center of the machine, and we bulit one realted company ( making the briquette and charcoal )with our machine.
5.Every machine will test before delivery and we will send the test video and other realted video to our client
6. all the motor of the machine with the CE certificate
7.product quality get the local government
guarantee
8. recommend clients for free, offer the layout drawing and the profit table
9.change the electrical power for free during warranty time.
10. offer the install video and free stuff training
