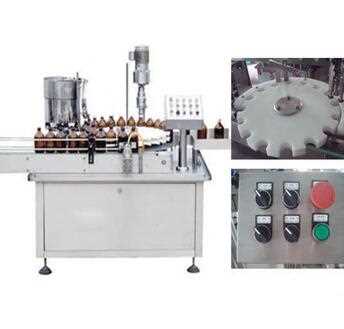

• RX-1 Series 220V/380V Automatic cap crimping machine

RX-1 Series 220V/380V Automatic cap crimping machine

After-sales Service Provided: Engineers available to service machinery overseas; Warranty: 12 Months; Capping speed: 30-40bottles/min; Function: cap crimping machine;

Product Details

Quick Details

Description

  • Type: Capping Machine
  • Condition: New
  • Application: Beverage, Chemical, Commodity, Food
  • Driven Type: Electric
  • Automatic Grade: Automatic
  • Voltage: 220V/380V
  • Power: 1.5KW
  • Packaging Type: Bottles
  • Packaging Material: Metal
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: SQUARESTAR
  • Model Number: RX-1
  • Dimension(L*W*H): 1500*1000*1400
  • Weight: 500kg
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 12 Months
  • Capping speed: 30-40bottles/min
  • Function: cap crimping machine



l         Capping speed up to 50 CPM

l         One button to adjust height

l         Wide applicability for various caps and bottles

l         Auto stop and alarm when lack of cap

l         Stainless Frame

l         No-tool adjustment

l         Choice of various types of cap feeders



Capping head

1

Speed

20-50b/m

Bottle diameter

30-80mm

Bottle height

30-240mm

Cap diameter

23-55mm

Dimensions

2000mm*770mm*1570mm(L*W*H)

Electrical requirement

1.5kw,220v,50-60Hz(Optional)

Weight

400KG

Working direction

Left → Right (or Right → Left)

RX-1 Series 220V/380V Automatic cap crimping machine

Company Profile

Established in 1994, Squarestar Machinery Equipment (Shanghai) Co., Ltd. manufactures pressure sensitive labelers. In the past years, our company has extended business to become a supplier of complete tablet and capsule bottling lines, including bottle unscramblers, counting and filling machines, cotton or desiccant inserters, cappers, induction sealers, labelers and cartoning machines. We also provide a complete solution to meet a variety of requirements from customers. Moreover, we supply liquid fillers and conveyor systems.

Currently, 70% of our customers are in the pharmaceutical and cosmetics fields. The balance is in the food industry. All designs and manufactures are done in our plant in Shanghai. We have a professional team to provide machinery proposals and after-sales service. Our company is currently well-known throughout China as one of the leading manufacturers in packaging business. In domestic market, we are the market leader of bottling lines, especially labelers. There are more than one thousand clients in over 200 cities using our products.

Our products cover high-end segment which adopts advanced control systems with high speed and perfect designs. The low-end products are cost effective and valuable. We also provide training, on-site installation, document support and good after-sales service. We can customize products according to specialized needs of customers.

We promise to supply high quality products with favorable prices to satisfy customers. Please feel free to contact us for further information.
