Quick Details
Description
- Design: motorcycle lift
- Type: motorcycle lift
- Certification: Other
- Lifting Capacity: 2200LB
- Lifting Height(mm): 1230mm
- Overall Width(mm): Adjustable
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: REACH
- Model Number: RH-1013
- Warranty: 1 Months
- Capacity: 2200LB
- Min.Height: 200mm
- Max.Height: 1230mm
- Table Size: 2200*790mm
- Guide bar size: 575*600mm
- Net Weight: 316kgs(1#Mainframe Box)
- Gross Weight: 384kgs(1#Box)
- Package Size: 244*102*35.5cm(1#Box)
- Power Supply: 200~240V
- Side plate size: 2400*270mm
Features
•Automatic release insurance structure for easy operation.
•The use of electric pumps as the power source, lifting speed, high efficiency.
•Beauty Appearance.
•Telescopic window plate, can be used to guide plate.
•Equipped with Side plate.
•With an insurance support, there are a variety of insurance height .
Specification
|

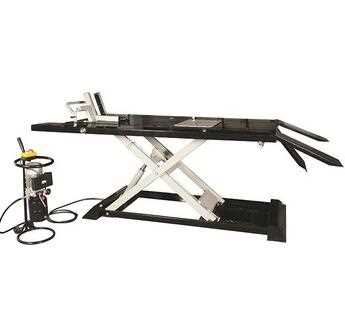

2017 small hydraulic motorcycle lift with 2200BL
RH-1013
|
Capacity: 2200LB
|
|
Min.Height:200mm
|
|
Max.Height:1230mm
|
|
Table Size:2200×790mm
|
|
Guide bar size:575×600mm
|
|
Net Weight:
316kgs(1#Mainframe Box)
61kgs(2#Side plate Box)
25kgs(3#Pump Box)
|
|
Gross Weight.:
384kgs(1#Box)
64kgs(2#Box)
41kgs(3#Box)
|
|
Package Size:
244x102x35.5cm(1#Box)
243x30x24.5cm(2#Box)
98x46x38cm(3#Box)
|
|
Quantity/40FCL:24pcs
|
|
Power Supply:200~240V
|
|
Side plate size:2400×270mm
|
