Quick Details
Description
- Type: Wrapping Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Bags, Belt, Cans, Film
- Packaging Material: POF, PE, PVC
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V/380V
- Power: 1.3kw /8.5kw
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: BOL
- Model Number: QL5545
- Dimension(L*W*H): L1700 W900 H1400
- Weight: 600KG
- Certification: ISO9001 CE
- After-sales Service Provided: Engineers available to service machinery overseas
- Product name: Automatic shrink wrapping machine
- Tape material: POF, PE, PVC
- Max. Packager Size of sealer: L450 W350 H100mm
- Max sealing size: L550 W450mm
- Rated voltage: 220-240V/50-60Hz 380v
- Power Consumption: 1.3kw/8.5kw
- Function: Shrinking Sealing
- Packing speed: 18~25pcs/min
- Warranty: One Year Guarantee

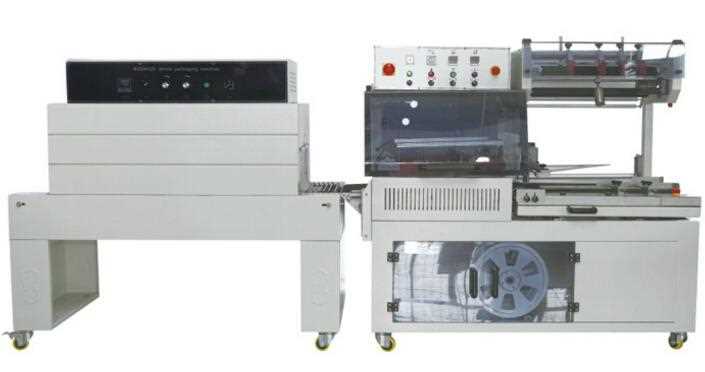

QL5545 Automatic L-type sealer
1. The sealing knife adopts copper alloy sprayed with teflon, it won't stick film, sealing fastness, without smoke, non-pollution. Horizontal and vertical sealing knife adopt whole connecting without gap, the film won't break. Sealing frame adopts high quality alloy steel, the sealing quality is stable, frame difficult to be damaged.
2. The machine has entire automatical system, it equiped with sensors can reach high speed automatical working.
3. It is convenient to adjust according to different sizes products, just adjust the handle wheel can reach it, operation is easy.
4.it can be connected with production line
5.it has protection function to avoid sealing product wrong and ensure the safety of operator
BS-D4520 shrink tunnel
1 It adopts Schneider AC contactor, high-power Solid state booster and intelligent temperature controller to make temperature system more accurate, prolong the working life.
2 It adopts solid roller conveyor, the rollers wrapped with high temperature silica gel tube. It can stand heavy product and difficult abraded (you can choose net type conveyor
3 It adopts high-power fan motor to ensure enough strong wind to reach perfect packing effect.
4 Inside wall adopts stainless steel, it has fast temperature transfer, even heating, low energy consumption, long working life
|
Model
|
QL5545
|
BS-D4520
|
|
Product Name
|
Automatic L-type PVC sealer
|
Heat shrink tunnel packing machine
|
|
Packing material
|
POF, PE, PVC
|
POF, PE, PVC
|
|
Voltage
|
220V 50/60HZ
|
380V 50/60HZ
|
|
Power
|
1.3kw
|
8.5kw
|
|
Capacity
|
0-20 pcs/min
|
0-15 m/min
|
|
Sealing temperature
|
160℃—240℃ depends on thickness of film and environment temperature
|
|
Air pressure(Kg/cm2)
|
5
|
/
|
|
Max. packing size
|
L500*W400*H120 mm
|
W450*H200 mm
|
|
Max sealing size
|
L550*W450 mm
|
/
|
|
Film thickness
|
0.015-0.10mm
|
|
Machine size
|
L 1700*W 900*H 1400mm
|
L1300*W715*H1455MM
|
|
Machine Weight
|
320kg
|
185kgs
|
