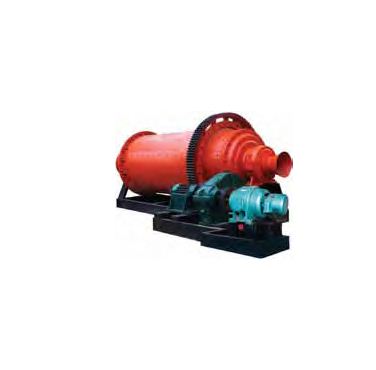

China Energy Saving Raymond Mill, Low Cost Raymond Milling Machine

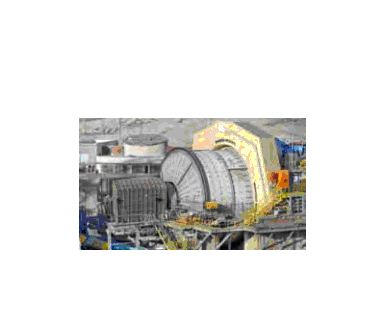

High Efficiency Autogenous Mill

Professional Manufacturers Portable Screener of Mining Machine

Min.Order: ≥1 set FOB Price: US $2,000-10,000/set Get Latest Price  Port: Qingdao Production Capacity: 5000 Sets Payment Terms: T/T, Western Union

Send Inquiry Add to My Favorites

Product Details

Quick Details

Description

Basic Info

Model NO.: 2szz1836
Type: Circular

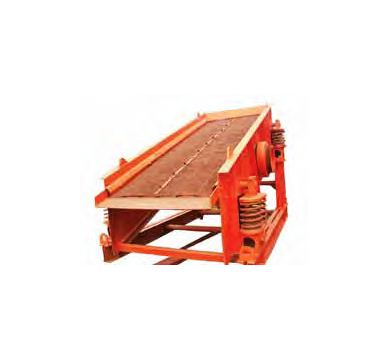

Function: High Frequency Vibrating Screen
Transmission Structure: Vibrating Screen
Usage: Mine Shaker
Works: Rotary Vane Shaker
Object: Ore
Shaft Number: Single
Running Track: Circular Vibrating Screen
Supporting Device: Coil Spring
Warranty: 5 Years
Customized: Customized
Condition: New
Weight: 4500kgs
Color: Yellow/Orange/Grey...
Production Capacity: 100-300tons/Hour
Product Model: 2szz1836
Quality: AAA
Material: Cast Steel
Trademark: DEXU
Transport Package: Wooden Pallet
Specification: 1800x3600mm
Origin: China
HS Code: 8474100000

Product Description

Principle
Driven by the motor through the pulley, the eccentric main shaft integrated with the screen box rotates and generates centrifugal force, and drives the vibration of circular trail of the screen box.
Features
World renowned wear-resistant rubber meshes with the service life 10- 20 times as long as that of the steel and 4-6 times as long as that of polyurethane can be provided.
World renowned wear-resistant rubber spring with long service life and low noise can be provided. Both the pedestal and hanged type vibrating screen are available.
The eccentricity of 3-5mm between the large pulley and the eccentric shaft balances the overall movement of the large pulley during the vibration of the vibrating screen, and increases the drive stability.
Application
Applicable for the classification of fine-grained materials in the industries such as mines, coal, metallurgy, building materials and chemical engineering.

Technical Parameters

Model	Spec.	Max. Feed Size (mm)	Capacity (t/h)	Motor Model	Motor (kWPower )	Weight (kg)	Remarks
SZZ0918	900×1800	40	20~25	Y100L1-4	2.2	420	Hanged
SZZ0918	10~30	553	Pedestal
2SZZ0918	20~40	570	Pedestal
SZZ1225	1250×2500	100	100	Y132S-4	5.5	1017	Hanged
SZZ1225	100	1466	Pedestal
2SZZ1225	100~150	1320	Hanged
2SZZ1225	100~150	1870	Pedestal
SZZ1530	1500×3000	90~200	Y132M-4	7.5	1850	Hanged
SZZ1530	2665	Pedestal
2SZZ1530	2963	Hanged
SZZ1540	1500×4000	100	90~200	Y160L-4	15	2865	Pedestal
2SZZ1540	1500×4000	400	90~200	Y160L-4	15	3412	Pedestal
SZZ1836	1800×3600	150	100~300	Y160M-4	11	4500	Hanged
2SZZ1836	Y180M-4	18.5	5616	Pedestal

Company information:

We are QINGDAO DEXU MACHINERY CO., LTD. Located in the machinery manufacture base of QINGDAO City,we have more than 20 years experience of R&D and sales, pass of ISO 9000 managment system & CE quality certification. As one of the leading machinery manufacturers such as:Mining machine( which including the crusher machine,screen machine and Milling machine), Shot/Sand blasting machine(polish the steel surface rust, strength the steel quality suit for steel plate, road surface, H beam, outer/inside pipe, oil pipeline casting etc),Also every year we are developing new machines per the market request.

Factory Ability:
.Clients Consulting Mineral Processing
.Mineral Processing Test
.Mine Design
.Installation & Commissioning

FAQ
1. Are you factory or trade company?
We are manufacturer, we also supply trade service.
2. Will you provide some wearing parts of the machines?
Yes, of course. We ship them with machine, spare parts in wood case.
3. How is the quality of your products?
We have been approved of ISO, CE and always produce our products strictly according to national and intertnational standards. We do strict inspection in every production stage, all the machines we sell are under warranty.
4. What about your price?
We always supply our products with low price, because we believe this is the way to build long-term business and earn good reputation.
5. What payments term do you accept?
We accept L/C, T/T and other ways like D/A and D/P etc, T/T goes with 30% advanced payment after signing contract or order confirmation.
6. What about the order lead time?
We have two factories and big productivity, the order lead time is only 15-25 days.

We promiss to all of our customers:

Same price ,with best quality,
Same quality,with best price.

Company Profile

Qingdao DEXU Machinery Co., Ltd. is a leading company in designing and manufaturing mining machine, road shot blasting machine and other speical machines.

The company is located in Qingdao City, Shandong Province, covering an area of 17000sqaure meters, Production area of 14000 square meters, with a total investment of USD2, 000, 000.00. The company currently employs more than 200 people, 20 technical personnels. After years of development the company's production capacity and technical level are in the advanced position in the same industry, and we have created good achievement.

Our R & D center in Qingdao city, innovation and quality are two very critical factors to meet customer need and create higher value for customer.
