Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Ghorit
- Model Number: GCS
- Model: GCS standard
- Type: L.V switchgear,Indoor
- Rated insulation voltage: 660V
- Rated current: 600/1000/1600/2000/3200
- Rated current of over current release: 250-5000A
- Ambient temperature: ≤+40℃
- daily temperature: ≤+35℃
- Lowest temperature: ≥-5℃
- Altitude: ≤2000m

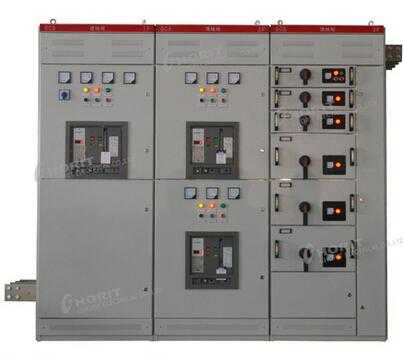

GCS low voltage switch cabinet is suitable for power distribution systems of most industrial plants.
GCS low-voltage withdrawable switchgear is suitable for power distribution system of power plant in petroleum, chemical industry, building materials, metallurgy, textile, architecture and other industries. It is used in power distribution, motor central control, reactive power compensation devices for power system with 50(60)Hz frequency, rated voltage 380V(400, 660) and rated current 4000A or below.
Standards and specifications
IEC439-1 Low-voltage switchgear and control gear
GB7251.1-2005 Low-voltage complete set switch device
ZBK36001 Low-voltage withdrawable switchgear
Dimensions
|
Height
|
2200
|
|
Width
|
400
|
600
|
800
|
1000
|
|
Depth
|
800
|
1000
|
800
|
1000
|
600
|
800
|
1000
|
600
|
800
|
1000
|
| |
|
|
|
|
|
|
|
|
|
|
|
Main circuit rated voltage (v)
|
AC380(400)(660)
|
|
Auxiliary circuit rated voltage (v)
|
AC220/380(400),DC110/220
|
|
Rated frequency (Hz)
|
50(60)
|
|
Rated insulation voltage(v)
|
660(1000)
|
|
Rated current(A)
|
Horizontal busbar
|
up to 4000
|
|
Vertical busbar(MCC)
|
1000
|
|
Busbar rated short-time withstand current(kA/1s)
|
50(80)
|
|
Busbar rated peak withstand current(kA/0.1s)
|
105(176)
|
|
Power frequency test voltage (v /1min)
|
Main circuit:2000
|
|
Auxiliary circuit:2000
|
|
Busbar
|
three-phase four-line type
|
A/B/C/PEN
|
|
three-phase five-line type
|
A/B/C/PEN/N
|
|
Degree of protection
|
IP30 IP40
|
Ghorit Electric Equipment Co., Ltd. Zhejiang is located in Xinguang Industrial Zone, Yueqing, Zhejiang Province, China. Our company enjoys convenient transportation.
Ghorit integrates R&D, Manufacture, sale and service. Ghorit covers 26000 Square meters, including a construction area of 12000 square meters.
Ghorit mainly produces and sells high-voltage electrical components and related equipment.
Ghorit passed through ISO9001 international quality system management certification. We always adhere to the tenet of "survival based on high-quality products". With strong technical force, advanced production technology, perfect detection means and superior product quality, we are expanding the markets. We have won a high reputation among clients.
