Quick Details
Description
Our products are widely used in
- municipal conservation,
- road construction,
- building construction,
- flooring treatment(epoxy floor, wear-resistant floor)
- other fields.(remove traffic line, rutty of road and airport)
Specifications
- 5.5KW siemens engine and super four or six bearings;
- Drum is heat treated specially;
- Exclusive supply good quality cutter;
- Drum can be replaced easily;
![]()

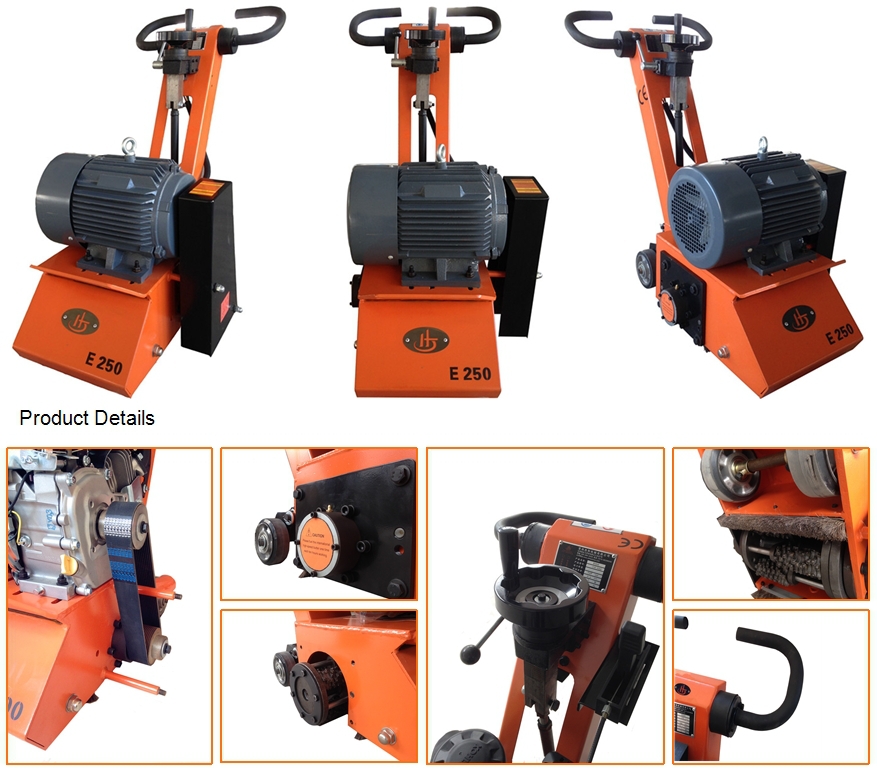

Pic1: 12PK belt has long life time
Pic2: Double bearing has high efficence
Pic3: Change the drum assembly only in 5 minutes
Sharp TCT cutter is aggressive to remove coatings
Pic4: Cutting depth adjustment
Pic5: Dust control brushes
Pic6: Anti-vibration mounts makes comfortable operation
The angular of strong handle can be transformed
Others: Front mounting lifting handle makes easy transportation
![]()
Pic1:5.5KW Siemens Motor
Pic2:186F CHANGCHAI diesel engine
Pic3:14HP KOHLER gasoline engine
Pic4: Honda GX390 or Honda GX270 engine
If you want some other kind of engine or motor which you are prefer to, contact with us please.
Paramete
|
Model
|
JHE-250
|
JHE-250E
|
JHE-250L
|
JHE-250D
|
|
Power Source
|
GX390 Honda/
14HP KOHLER
Gasoline engine
|
Siemens
Electrical motor
|
GX390 Honda
Gasoline engine
|
186F Diesel
Gasoline engine
|
|
Horse Power
|
13HP
|
5.5KW
|
9HP
|
13 HP
|
|
Working width
|
235mm
|
235mm
|
235mm
|
235mm
|
|
Working depth
|
5-8mm
|
5-8mm
|
5-8mm
|
5-8mm
|
|
No. of shaft
|
6pieces
|
6pieces
|
6pieces
|
6pieces
|
|
No. of cutter
|
81pieces
|
81pieces
|
81pieces
|
81pieces
|
|
Power Drive
|
Manual
|
Manual
|
Manual
|
Manual
|
|
Working area
|
60-85 m2 / H
|
60-85 m2 / H
|
60-85 m2 / H
|
60-85 m2 / H
|
|
Net Weight
|
178KG
|
201KG
|
132KG
|
199KG
|
|
L× W× H
|
910×470×880mm
|
910×470×880mm
|
910×470×880mm
|
910×470×880mm
|
|
Drum Rotation
|
Down cut (clock wise)
|
|
Milling mode
|
downward cut
|
|
Depth Control
|
Adjustable
|
Parts details
![]()
