Quick Details
Description
Technical Features
| Drive Mode |
Gear drive and belt drive |
| Operation Mode |
Two or four grinding tanks working together |
| Maximum Loading Capacity |
2/3 of the capacity of milling tank |
| Feeding Size |
Soil material≤10mm, other materials≤3mm |
| Output Granularity |
Minimum 0.1 μm |
| Rotational Speed Ratio |
1/2 |
| Max. Continuous Operating Time |
72hours |
| Materials of Jar |
Stainless steel, agate, nylon, corundum, zirconia, etc. |
Working Principle

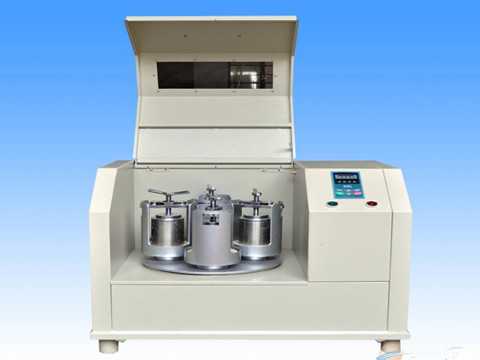

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.
Henan Fengqiang Machinery Equipment Co., Ltd is specializing in designing, manufacturing all kinds of mining equipments and lab equipments. Our main products are Calorimetric apparatus series, Sulfur measurement series, Hydrogen measuring series, Industrial analyzer series, Moisture measurement series, Ash melting point measuring series, Caking index measurement series, Glial layer measurement series, Crushing and shrinking equipment and other lab equipments.
Our equipments are widely used in mining, electric system, metallurgy, geology, oil, chemical industry, rubber, chemical fertilizer, environmental protection, construction material, coking, papermaking, university and colleges, scientific research departments and so on. We design and manufacture equipment on basis of international quality system and strictly execute. Our equipments have the features of stable performance, simple operation, low cost, environment friendly and so on. We always continuously pursue technology and management innovation to serve our customers better. Our target is to offer a full professional concentration services for our customers. Professional service team provide comprehensive after-sales service support.
We promise that we will make great efforts to provide excellent quality, best service and mutual benefit to our customers all the time.
