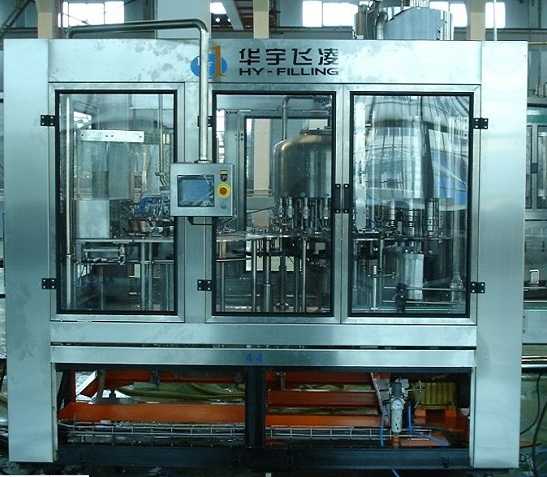

PET Bottle Mineral Water Filling Machine is combined with rinsing, filling and capping, which special designed for PET bottled Still Water, Mineral Water and Purified Water. It is stable characteristic, advanced technology, nice appearance and complete function.
Technical structure feature:
a. Rinsing part:
☆ It is rotary type, mainly sued for rinsing new bottles send the bottles to the filling machine.
☆ PET bottle enters the machine by bottle distribute wheel star, and turned with mouth down by clip and turn mechanism, after sterile water rinsing and drying, automatic turn with mouth up, and send to filling machine by bottle-outlet wheel star. The main structure with rinsing water and outer shield are all stainless steel material; open type gear drive.
☆ Renew stainless steel clip, simple structure, convenient adjustment; small area touch with bottle mouth, avoid the secondary pollution for the bottle mouth efficiently.
☆ Bottle rinsing machine inlet pipe equipped with pressure gauge.
☆ Bottle rinsing machine equipped with water collector to callback rinsed water.
☆ The consumptions of the water for each type of bottle when rinsing is 105ml/s (when 0.25Mpa)
Main configuration:
1. Material of filling valve: Stainless steel SUS316.
2. Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.
3. Main motor: ABB (Switzerland)/ SEW (Germany).
4. Sliding bearing: Igus (Germany).
5. Frequency inverter: Danfoss (Damark)
6. Touch screen: Siemens (Germany)
7. PLC: Siemens (Germany)
8. Contactor: Schneider (France)
9. Breaker: Schneider (France)
10. Air switch: SCHNEIDER (France).
11. Pneumatic components: CAMOZZI (Italy).
12. Seals: SEALTECH (HK).
13. Photocell switch: Sick (Germany)
14. Proximity switch: TURCK (Germany).
Technical Parameters:
| Model |
CGN18-18-6 |
| Number of Working Positions |
Rinser 18, Filler 18, Capper 6 |
| Rated Capacity |
6000BPH(500ml) |
| Filling Method |
Gravity Filling |
| Applicable Bottle |
PET Bottle, Diameter 50-100mm,Height 150-320mm |
| Applicable Cap |
Normal Standard Cap |
| Air Supply Pressure |
0.7 MPa |
| Air Consumption |
0.2M3/min |
| Rinsing Water Pressure |
0.2~0.25 MPa |
| Rinsing Water Consumption |
About 2.0T/H |
| Rated Voltage |
380V |
| Installed Power |
3.37 KW |
| Dimensions |
2000mm×1900mm×2600mm (L×W×H) |
| Machine Weight |
4500Kg |
