Quick Details
Description
The plastic forming machine is developed on the basis of rubber machinery and metal die-casting machine. Since the polymer injection molding process and molding equipment in the 1870s, as an industry,plastic forming machine got rapid development until the 1930s,with the gradual commercialization of plastic molding equipment, injection molding and extrusion molding has become the most common industrialized processing methods. Blow molding are the third largest plastic molding method after the injection molding and extrusion blow molding method,it also are the fastest development of plastic molding method.

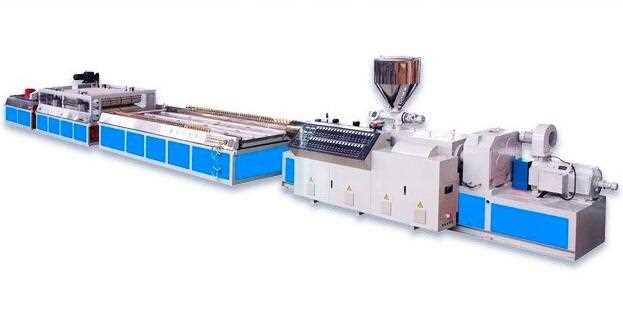

PVC door panel extrusion line this plastic forming machine has compact structure, good plasticization, high output, long life and other advantages. This PVC wide door panel extrusion line uses SJZ80 conical twin screw extruder or SJP90 parallel twin screw extruder with alternating-current inverter, imported electronic components and PT100 platinum resistance, which provide wide adjusting range and precise temperature control. The downstream equipment includes vacuum calibration and cooling unit, haul off unit, cutting machine and stacker. The calibration unit is equipped with large forced cooling system so that it can provide prefer\ct calibration effect.
The cutting machine is equipped with PLC control system which helps to set length and provide accurate automatic cutting.
Features of this plastic sheet forming machine:
1. SRL-Z series mixing machines
2. Conical double screw extruder
3. Profiles moulds
4. Vacuum mould table
5. Hauling-off and cutting unit
6. Automatic Stacker
7. Profiles crusher
8. Milling machine
Main Technical Parameter of this plastic forming machine:
|
Model
|
SJSZ80/156
|
SJSZ92/188
|
|
Profile width (mm)
|
400-600mm
|
600-1200mm
|
|
Line speed (m/min)
|
0.3-3
|
0.3-4
|
