Quick Details
Description

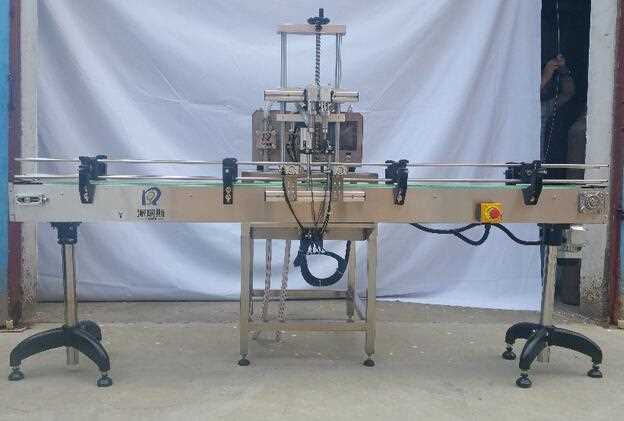

- Type: Filling Machine
- Condition: New
- Application: Chemical, Food, Medical
- Packaging Type: Bottles, Cans, Pouch, Stand-up Pouch
- Packaging Material: Glass, Metal, Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V/110V
- Power: 1200W
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Parris
- Model Number: PDF-200A
- Dimension(L*W*H): 2400*800*1300mm(L*W*H)
- Weight: 120Kgs
- Certification: CE Certificate
- After-sales Service Provided: Engineers available to service machinery overseas
- Product name: gear pump
- Name: Digital filler
- Contact parts: 316 Stainless Steel
- Function: Cream/ Shampoo filling
- Filling Volume: 10ml -11000ml
- Filling accuracy: 0.5g
Features:
1.It is suitable for high /low viscosity cream , foaming liquid , such as shampoo, lotion,honey,detergent,etc.
2.It's contact parts are 316 stainless steel.
3.It's filling accuracy is ±0.5g.
4.Filling volume from 2ml to umlimited
5.It can be 2&4&6 heads and etc.,
*No need to change parts, just adjust the position of several components.
*Easy operation and convenient maintenance.
*The torque force can be adjusted.
*Specific device can perfectly solve the problem for that high bottles or other bottles cannot stand up stably.
*Cap sorter, conveyor, capping head and bottle gripping belt, all speed can be adjusted. More adaptable.
*Adoptable device: automatic caps elevator or caps hopper.
*Whole machine is made accroding to GMP requirement.
Technical Parameters:
*Suitable cap diameter:φ20-70mm
*Suitable bottle mouth diameter:φ40-100mm
*Power supply:AC 220V,50HZ
*Powder consumption:2KW
*Weight:650KG
*Machine dimension:2000*8500*1620(mm)
*Production capacity:0-6000bottle/hour
