Quick Details
Description
- Place of Origin: Yunnan, China (Mainland)
- Brand Name: OTON
- Model Number: DLB-500
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Color: Yellow
- Voltage: 37V,22Ah,max80A

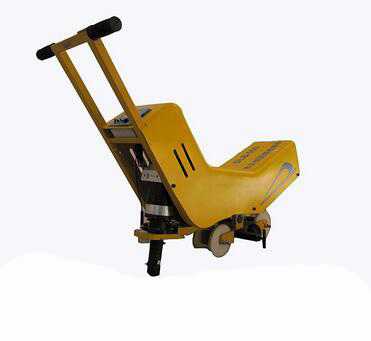

- Product name: Intelligent Bolt Wrench For Railway
- Function: Suitable for rail elastic fastening,nuts of the elastic operation .
- Spindle Speed: 80rpm
- Adjustable Torque: 0~500N.m
- Accuracy of torque: ±5%
- Max. Torque: 500N.m
- Dimensions(L*W*H): 1000*420*750mm
- Weight(No battery): 31.5Kg
Description:
Ø Suitable for rail elastic fastening,nuts of the elastic operation. Can be in hypoxia, low pressure of the plateau and closed environment;
Ø Advanced numerical control intelligent technology, reasonable use of battery, automatic correction of bolt torque, realize the “torque” and “power” of intelligent management;
Ø Using precision torque sensor to directly measure and control the working torque of the sleeve and achieve high accuracy operation effect, especially for the maintenance requirements of high speed railway line;
Ø Five shifts of spindle speed.80,120,150,200,250Nm;
Ø Ergonomic designing machine. All the operation could be done by simply pressing down the height-adjustable hand lever;
Ø A walking wheel and the clamping rail wheel device, in rail easy implementation and prevent rollover; rear lifting mechanism is arranged to carry out on the ground;
Ø With lighting equipment ,and the sleeve can be quickly replaced;
Ø Tighten a bolt is less than or equal to 5s, loosen a bolt of less than 4s.
Technical Data:
Ø Lithium battery:37V,22Ah,max80A, 6.5kg
Ø Spindle Speed:80rpm
Ø Adjustable Torque:0~500N.m
Ø Accuracy of torque:±5%
Ø Max. Torque:500N.m
Ø Lithium battery power: Fully charged battery can tighten 2000~2500nuts
Ø Dimensions(L×W×H):1000×420×750mm
Ø Weight(No battery):31.5Kg
Otongda railway machinery is a wholly-owned subsidiary of Kunming Railway's Large Track Maintenance Machine group co., LTD, which was established in 2010. It is also a third level subsidiaries of China Railway Construction co., LTD, owining registered capital of 50 million yuan. Otongda, the stated-owned limited liability company, mainly engages in manufacture, repair, research and development of all sorts of railway maintenance machines. Since all of Otongda's operation has been strictly undergone by modern enterprise standards, its products had been sold to 18 central railway administrations and other local transportation systems. The company has received high praise from the mass customers because of the high-level products and effective service.
