Quick Details
Description
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: OEM/ODM
- Model Number: LH17-01A

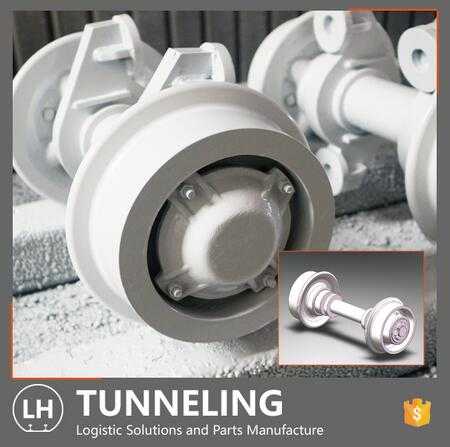

- Product Name: Freight Wagon Wheel
- Foundry: Cast/Forge
- Material-GB: 45#/40Cr/42CrMo
- Heat Treatment: ≥HRC24/Customized
- Surface Treatment: ≥HRC28, Depth≥3mm/Customized
- Wheel Diameter: ≤18" (450mm)
- Rims: 0/1/2 Flanges
- Appearance Dimension: Comply your drawings
- Paint: Powder Coating/Anti-rust oil coating
- Application: Locomotive/Rolling Stock/Freight Wagon/Trailer/Crane
|
Product Name
|
Freight wagon wheel
|
|
Forming
|
Casting / Forging
|
|
Standards
|
AAR-M, UIC, EN, GOST, IRIS, KSR, BS, JISE, GB/T
|
|
Material-GB
|
Alloy Steel | 45# / 60# / 40Cr / 42CrMo / etc.
|
|
Wheel Diameter
|
≤18" (450mm) / Customized
|
|
Heat Treatment
|
≥HRC24 / Comply Standards
|
|
Tread Surface Treatment | Depth
|
≥HRC28, Depth≥3mm / Comply Standards
|
|
Rims
|
0/1/2 Flanges
|
|
Appearance Dimensions
|
Comply your drawings
|
|
Paint
|
Powder Coating/Anti-rust oil coating
|
|
Application
|
Locomotive / Rolling Stock / Freight Wagon / Trailer / Crane
|
|
Order Process
|
1. You send us drawings or samples -> We workout the project, lead time and production drawings
|
|
2. You think it is OK and place the order (deposit) -> We start production and report our progress weekly
|
|
3. We send you our quality inspection report, packing list and photos -> You pay us the balance before the delivery
|
|
Product Name
|
Freight Wagon Wheel
|
|
Foundry Type
|
CAST / FORGE
|
|
Rims
|
0 / 1 / 2 Flanges
|
|
Ø
(Wheel Diameter)
|
6" - 18" (150 - 450mm)
|
|
Ø'
(Inner Diameter)
|
According to Your Bearings
|
|
a
(Outer Diameter)
|
Comply Your Drawings or We designed to Fit Your Situation
|
|
b
(Wheel Width)
|
|
Service Provided
|
|
1. Help customer to DESIGN and PROMOTE drawings
|
|
2. SAMPLES are avaliable before massive prodution
|
|
3. Dimension and material inspection reports are avaliable after production
|
|
4. The project progress will be reported to customer weekly
|
|
5. Shipment can be arranged by us or customer in advance 7 days before finish
|
|
6. Product photos, shipping lists and reports will be sent to customer when finish the order
|
|
7. Welcome inspection by you or third party
|
Remarks:
* Customized wheels, axles and supportings are all accept
* Feel free to send us your requests and standards. A quotation will be sent to you ASAP.
* The lead time normally takes 2 - 8 weeks depending on quantity and complexity of process.
* A tolerance K6 (+0.004, -0.021) can be applied to the inner hole
* The surface roughness for inner hole can be machined as Ra 1.6
* The end surface roughness can be machined as Ra 3.2
* The tread surface roughness can be machined as Ra 12.5
LH-tunneling design firm was founded in 2010. Our design team focus on logistic solutions in mining fields. In previous years, we have been designed and producted different kinds of non-standard equipment in mining fields., such as rolling stock on rail gauge 24", 28", 32", 36", etc., large equipment as turntable, side dump station, rolling dump station, etc..
OEM/ODM Profile:
We have long-term cooperation with wold's leader brand in mining equipment. Our factory have been working in this field for more than 10 years. Our product line has covered Rolling Stock/Muck Car, California Switch/Travelling Switch, Bogies, Wheel Assembly, Coupler System, Brake System, Rail Wheels, Worm Wheel Sets, Rollers, TBM Disc Cutter, etc..
Workshop Profile:
We have co-operated factory in Xiaoshan and Wuxi. Two factories have been manufacturing spare parts under ground for more than 10 years. We can provide high quality machinery solutions, Casting, Forging, Weldment, CNC Machining, and etc..
