Quick Details
Description
- Condition: New
- Type: Universal, Small Railway Maintenance Machine
- CNC or Not: Normal
- Max. Grinding Diameter: 30mm
- Place of Origin: Liaoning, China (Mainland)
- Brand Name: Public Power
- Model Number: NM180B
- Voltage: According To Customer Needs
- Power(W): 1.47kw/7000-7500rpm
- Dimension(L*W*H): 76*24*24 cm
- Weight: ≤7.5 kg
- Certification: CRCC/ISO9001
- After-sales Service Provided: No overseas service provided
- Gasoline Model: Nissan komatsu G4L-D
- Gasoline Power: 1.47kw/7000-7500rpm
- Rated rpm: 7000+ 7500r/min
- Usage: Rail Maintenance
- Materials: Steel
- Application: Grind Rail Surface
- Colour: Yellow/Black/Red
- Warrenty: 180 Days

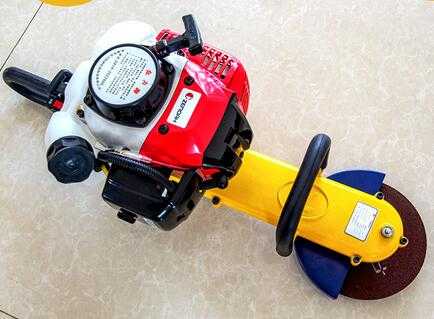

- keyword: NM/180B Portable mini rail disc cordless angle grinder machine
Structure:
NM-180B is combined with engine, clutch, spindle, output shaft..
Working principle:
engine outputs energy through the centrifugal clutch to the spindle by 7000±500 rpm, the engine pass the V-area and V-wheel by1:1 to the output shaft, making the grinding wheel produce a 80m/s linear speed for grinding operation.
Application:
1.Grind rail surface, side part, connecting part, fat edge.
2.Cut steels such like sleeper shaft bolts which the diameter within 30mm.
|
Serial number
|
Project
|
Data
|
|
1
|
Grinding slice linear speed
|
≤80(m/s)
|
|
2
|
diameter
|
150-180 (mm)
|
|
3
|
Gasoline Model
|
Nissan komatsu G4L-D
|
|
4
|
Gasoline Power
|
1.47kw/7000-7500rpm
|
|
5
|
Weight
|
≤7.5 kg
|
|
6
|
Dimensions
|
76*24*24 cm
|
|
7
|
Rated rpm
|
7000+ 7500r/min
|
Benxi public power railway equipment manufacturing co.,LTD, is a professional manufacturing company that most productions are made for the railway maintenance works. The company has abilities of producing development, testing, manufacturing, and also has a good after-sales service system.
The company was founded in 2005, covers an area of ten thousands square meters with beautiful environment and superior geographical position. The company is located in Benxi city which has a large state-owned steel enterprises, that provides high quality steel materials; and the Liaoning institution of technology in the city is supporting the company with the technology research. Ten years, the company has accumulated enough capital, build a scientific research team, has three factory area, seven cooperative outsourcing manufacturer. The company's flagship products, ND-4.2, ND-5.0 tamping picks, passed the certification of C.R.C.C, and obtained the new product technical appraisal certification of Shenyang Railway Bureau. In 2013, the company passed the ISO9000 quality management system certification. Perfect quality management system, supported quality assurance for the company's products. Going green and environment protection is going to be the development direction for the company of the next five years, the new power with lithium-ion battery of new equipment is under developing, and is expecting go to the market within 1-2 years. The company believes that quality is the lifeline of every enterprise, always make sure that customs are satisfied with every product and service. 2016, the company is starting to layout the international market, willing to make the "public power" brand as a well-known brand in the future.
