Jiangsu Novotech Electronic Technology Co., Ltd.

Year Established:2013

Business Type:Business Service

Management Certifiation:

Contact Supplier Visit Minisite

More from this Supplier

NEMA 24 Stepper Motor with Feedback

NEMA 24 Stepper Motor with Feedback

 NEMA 17 Stepper Motor for Robotic

NEMA 17 Stepper Motor for Robotic

 NEMA 34 Closed Loop Stepper Motor with Motion Controller

NEMA 34 Closed Loop Stepper Motor with Motion Controller

 High Performance NEMA 34 Stepping Motor 2 Phase

High Performance NEMA 34 Stepping Motor 2 Phase

 1.8 Degree NEMA 23 Hybrid Stepper Motor with High Torque

1.8 Degree NEMA 23 Hybrid Stepper Motor with High Torque
  • NEMA DC Hybrid Stepper Motor Manufacturer

NEMA DC Hybrid Stepper Motor Manufacturer

Our products are widely used in 3d and inject printers, CNC routers, Engraving Machines, Stage Lighting Control, Security Surveillance, Video Equipment, Laser workstation, Carving Machine, Office Automation,Smart Toy, Digital Controlled Machinery,Analytical and Medical Instruments, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, High Speed Dome Camera,Robotic and other automatic equipment.
Send Inquiry  Add to My Favorites

Product Details

Quick Details

Description

Technical Parameter

Item Specifications
Step Angle Accuracy ±5%(full step,no load)
Temperature Rise 50 degree Max
Ambient Temperature -20 degree to +50 degree
Insulation Resistance 100MΩMin.500VDC
Withstand Voltage 500VAC for one minute
Shaft Radial Play 0.02Max.(450g-load)
Shaft Axial Play 0.08Max.(450g-load)


Specifications

Model No. Phase Step
Angle		 Holding
Torque		 Rated
Current		 Phase
Inductance		 Phase
Resistance		 No.of
Leads		 Rotor
Inertia		 Body
Length		 Weight Remark
    ° Nm A mH Ω   gcm2 mm kg
42SC03 2 1.8 0.4 2.3 2.8 1.65 4 73 69 0.37 shaft Dia 8mm
shaft Length:24mm
42SC08 2 1.8 0.6 2.3 2.5 1.3 4 86 76 0.45 shaft Dia 8mm
shaft Length:24mm

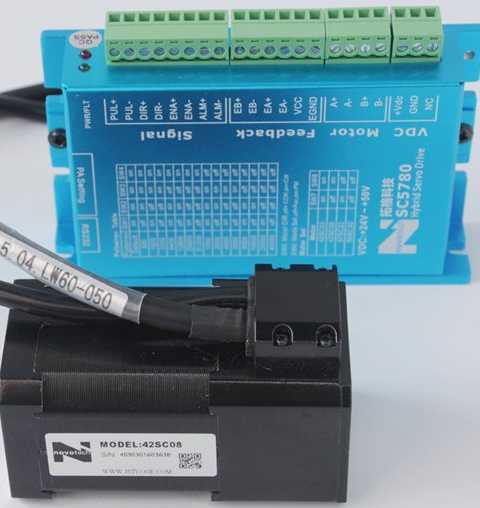

NEMA DC Hybrid Stepper Motor Manufacturer

Company Profile

Jiangsu Novetech Electronic technology Co., Ltd is a professional company which offers automatic control devices and System integral solution. Novotech was established in 2011. After years of devotion on marketing and technology research, Novetech has won an excellent reputation by offering stable and consistent products to domestic and oversea equipment manufacturers.

The main motion control products of Novetech include: Stepper motor, stepper driver, hybrid servo, low Voltage servo, integrated motor drive and professional CNC system based on independent style stepper controller. Our products are widely applied to electrical, machinery, measurement, laser, medical, textile, package and advertising industries for a long time.

The core of the equipment manufacturing industry is the precision motion control. Novetech stands for Novo and technology. Firmly believing in the craftsman spirit and sustainable Innovation, Novetech develops series of universal products with great representativenesses. Customized products with targeted features can be developed according to different clients' requirements to help them to reduce the cost, shorten their development cycle and improve their production efficiency.
