Quick Details
Description

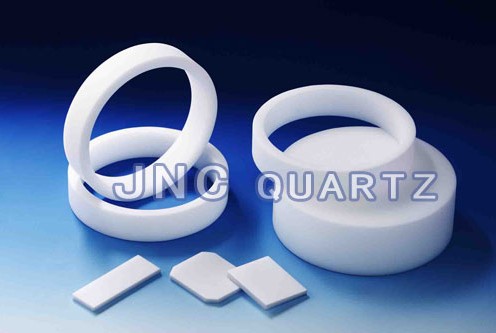

Our company develop opaque quartz item with well heat insulation and high temperature-resistant, application for heat insulation accessories in semiconductor processing.
Chemical element composition(Typical data)ppm
| Ca |
Fe |
Cu |
Mg |
K |
Na |
Li |
Al |
| 0.80 |
0.50 |
0.10 |
0.10 |
1.60 |
2.20 |
0.30 |
25.00 |
Transmission
| wave length(nm) |
400nm |
500nm |
600nm |
700nm |
| transmission |
1.0% |
1.2% |
1.2% |
1.2% |
test sample thickness 4mm
Air bubble : Magnify 100 times
Density >2.0 × 103kg /m3
.jpg)
Jinzhou New Century Quartz(Group) Co., ltd (called JNC) is located in Jinzhou Economic &Technology Development Zone Liaoning .Quartz factory is very closed to Jinzhou international harbor in North-East China .
Our company was established in 1992, and one of the major quartz glass manufacturer in China. We have several fusion methods, such as electrical continuous, drawing for both transparent and translucent ,electrical rotated fusion for opaque , and flame fusion ingot.
We can also fabrication for infrared provide infrared quartz lamp.
Re-sized transparent tube for semiconductor industries. optical fiber and other industry application. The products are exported to many countries ,such as America, Europe, Asia (Japan, Korea, Taiwan, Singapore etc)
