Quick Details
Description
Place of Origin: China (Mainland) Brand Name: holykell Model Number: UF2000-H Accuracy: Better than 1% Pipe size: DN15mm-6000mm Power supply: DC8~36V or AC10~30V output:: 4--20mA;OCT;RS232/RS485;Pulse. Product Name: N15-DN6000mm Hand held Ultrasonic flowmeter /RS485 Portable flow meter Medium: liquid,gas Type:: Clamp on type, Plug in type, Pipe type keywords: ultrasonic flow meter Application: liquid,oil,gas,etc. Consumption:: 1.5W
Packaging & Delivery
Packaging Details: ultrasonic water flow meter carton or customers requests available
Delivery Detail: 5-7 days

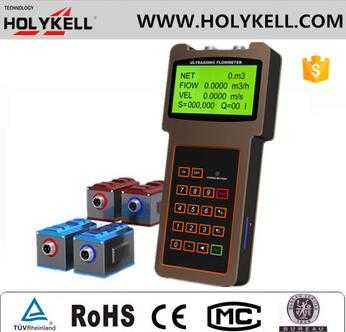

N15-DN6000mm Hand held Ultrasonic flowmeter /RS485 Portable flow meter
You will benefit from our 10 years level and pressure measurement experiences and 18 months warranty, 0 return back rate ,0.015% maintence rate.
[ Feature ]
High Accuracy measuring
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
Small size, Light weight
Dimensions: 200×93×33mm; Weight:390g
Non-intrusive measuring
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
Wide measuring range
Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
Large LCD display
Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.
Built-in data logger
Built-in 24K data logger, store over 2000 lines measuring data
2.Applicable pipe materials
Carbon steel, Stainless steel, PVC, Cast iron, Brass,Aluminum, etc.
3.Applications
ü Water supply Sewage treatment
ü Sea water desalination Pure water
ü Ultra-pure water Industrial circulating water
ü Diesel fuel, oil flow metering, etc
