Quick Details
Parameter
Main axis motor: : Slip motor
XY axis motoe: : Servo motor
Rotary Hook: : Small Rotary hook
Needle: : 12#-16#
Stitch Length: : 0.15mm-12.7mm
Max. Speed: : 800RPM
Power: : 380V 50HZ
Total power： : ＜5KW
Description
Function characteristic：

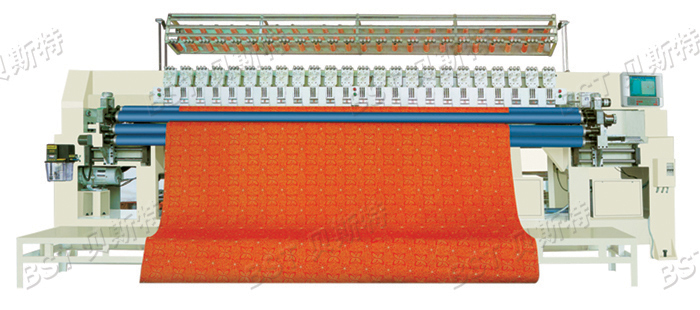

Combining quilting and embroidering into one machine.
Every head can be chosen to quilt and embroider.
Automatic fastening system.
Unlimited and continued quilting and embroidering in Y axis.
Embroidery frame moving on straight rails.
Panasonic servo motor driving in X and Y axis.
Each head equipped with the Auto-oiling system.
Auto-trim system can be installed.
10 inches color LCD monitor, tracing designs and easy to be operated.
| Model |
Heads QTY |
Heads QTY |
Interal |
Quilting width |
| BST-330 |
30< |
3 |
101.6mm |
3353mm |
| BST-324 |
24 |
3 |
135mm |
3240mm |
| BST-318 |
18 |
3 |
152.4mm |
2734mm |
| BST-320 |
20 |
3 |
152.4mm |
3048mm |
Nantong BST Quilting Embroiders Equipment Manufacturing Co., Ltd. is a manufacturer of computerized quilting machines, embroidery machines and combined quilting embroidery machines.
Located in the city of Nantong, we have a manufacturing facility that covers more than 15,000 square meters, where we utilize advance machinery production equipment in order to offer our customers the best possible quilting and embroidery machines.
Moreover, we employ an experienced team of R&D, quality control, production and management personnel dedicated to ensuring total customer satisfaction. Accordingly, we manufacture all of our machinery in strict accordance with relevant national and international quality and safety standards.
Due to our strong R&D capability and innovative management team, we produce a wide range of quilting and embroidery machinery. Our machines include multi-head computerized embroidery machines, single-head computerized quilting machines, multi-head computerized quilting machines, multi-needle computerized quilting machines, computerized quilting embroidery machines and free-needle computerized quilting machines.
With a great reputation for reliability and precision, our quilting and embroidery machines are sold in more than 20 countries and regions worldwide. As such, we invite all interested companies to visit our website or contact us directly for further information. We look forward to supplying you with high quality machines in the near future.
