Description
SIWOB series MCB
Scope of application
They are applicable to the circuit with rated voltage of up to 400V and rated current of up to 125A to provide overcurrent protection for line facilities and electrical equipment in the buildings and similar places or for infrequent make-break operation
Work environment in use and installation conditions
Work environment in use and installation conditions
The altitude of installation site shouId not be more than 2,000m;
The ambient air temperature is -5℃ - +40℃, and the average temperature within 24h shouId be not higher than +35℃,
When the maximum temperature is +40℃, the air relative humidity is not higher than 50%, and a higher relative humidity can be tolerable at relatively low temperature，for example，the relative humidity is 90% at +20℃;
Pollution degree 2 (i.e.，”There is non-conductive pollution under normal circumstances , but transient conductivity is taken into consideration due to accidental condensation”),
Vertical installation, error is ±5°
Terminal electrical equipment is installed on TH35-7 mounting rails

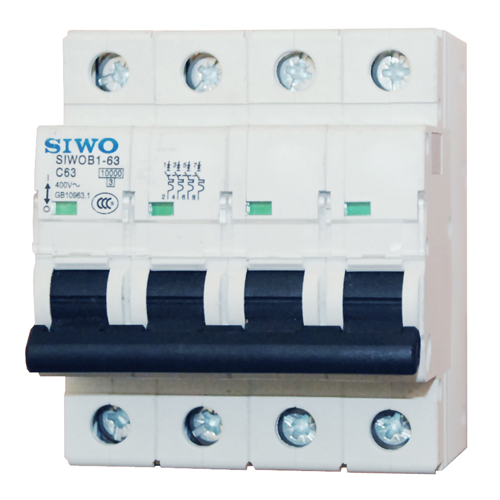

SIWOB1 miniature circuit-breakers

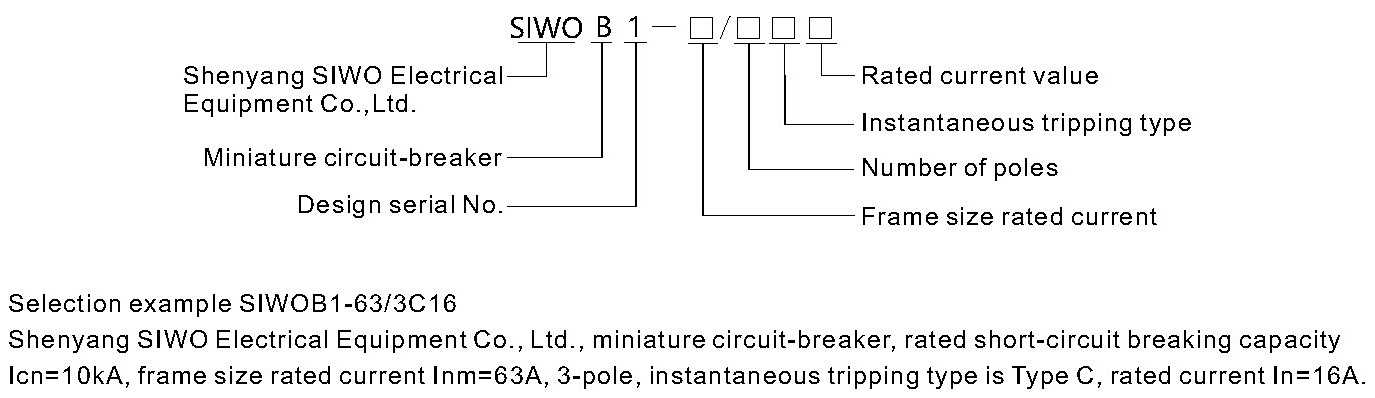

Model description

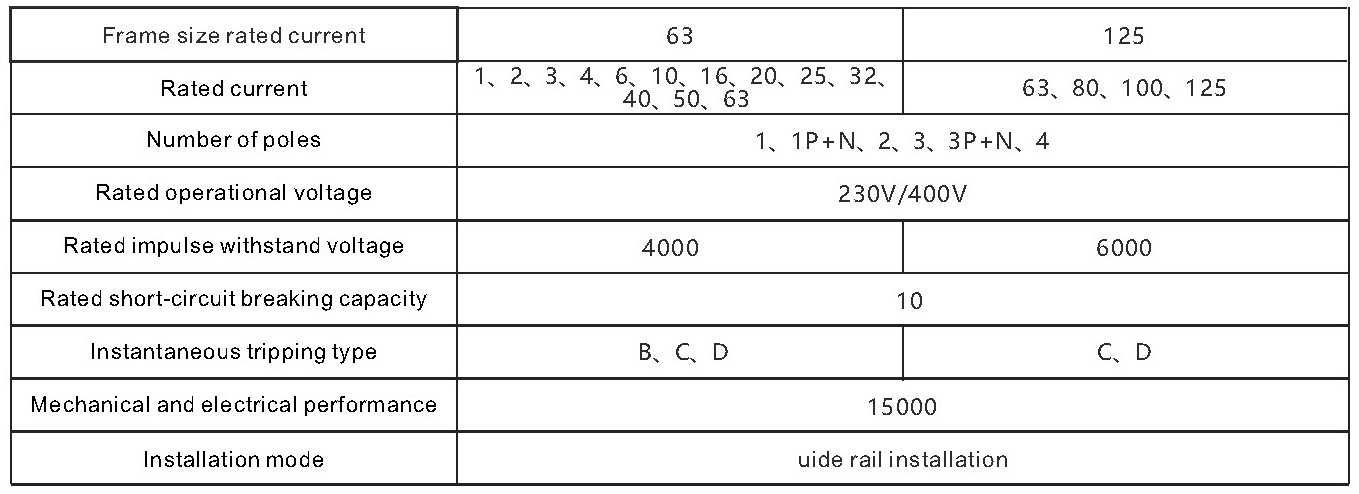

Technical index
SIWOB2 miniature circuit-breakers

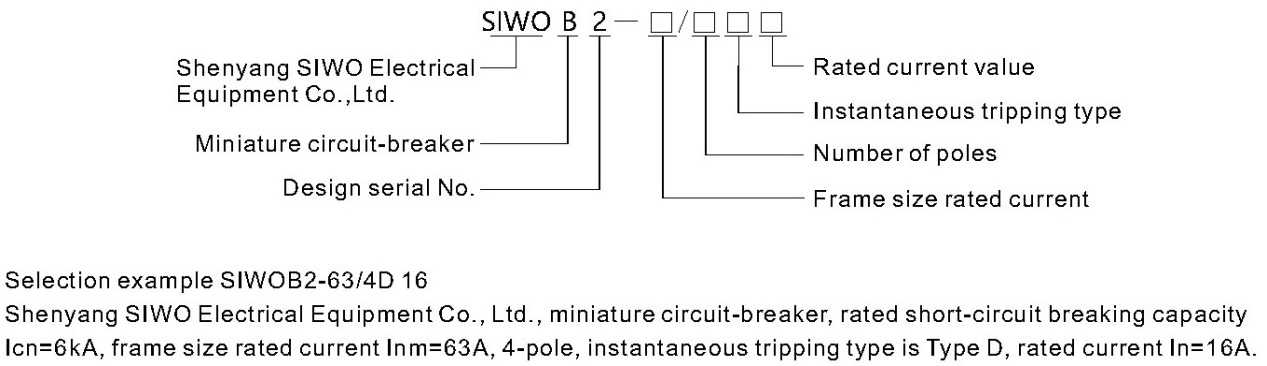

Model description

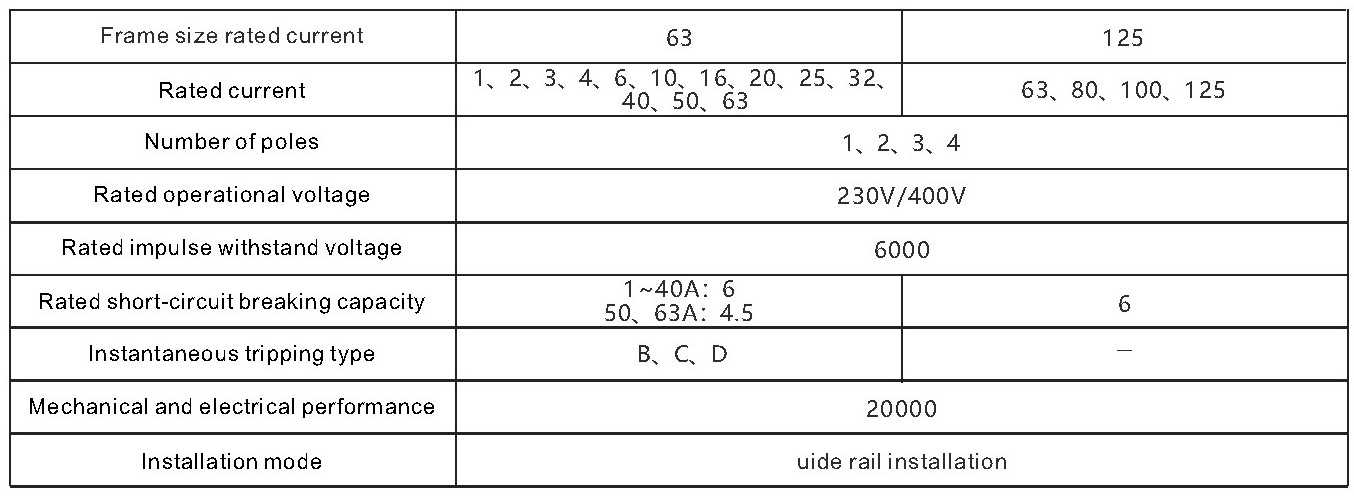

Technical index
SIWOB3 miniature circuit-breakers (phase line+ neutral line)

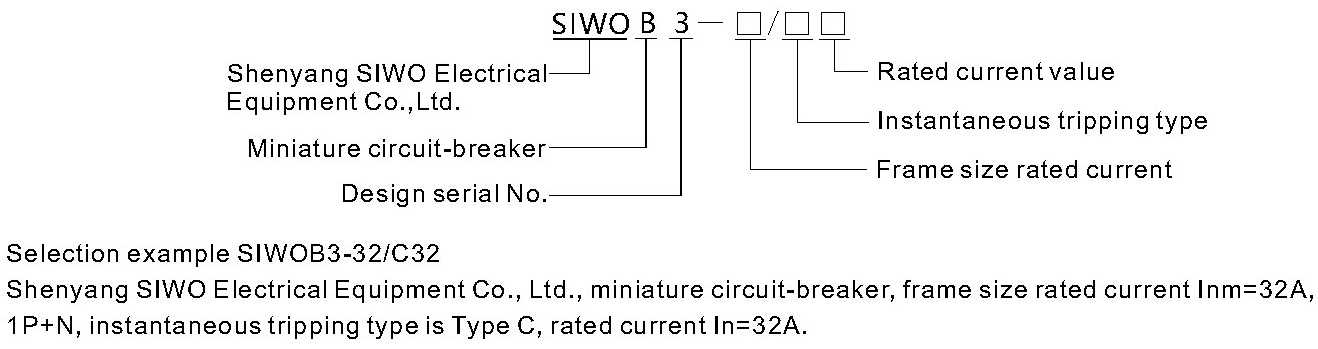

Model description

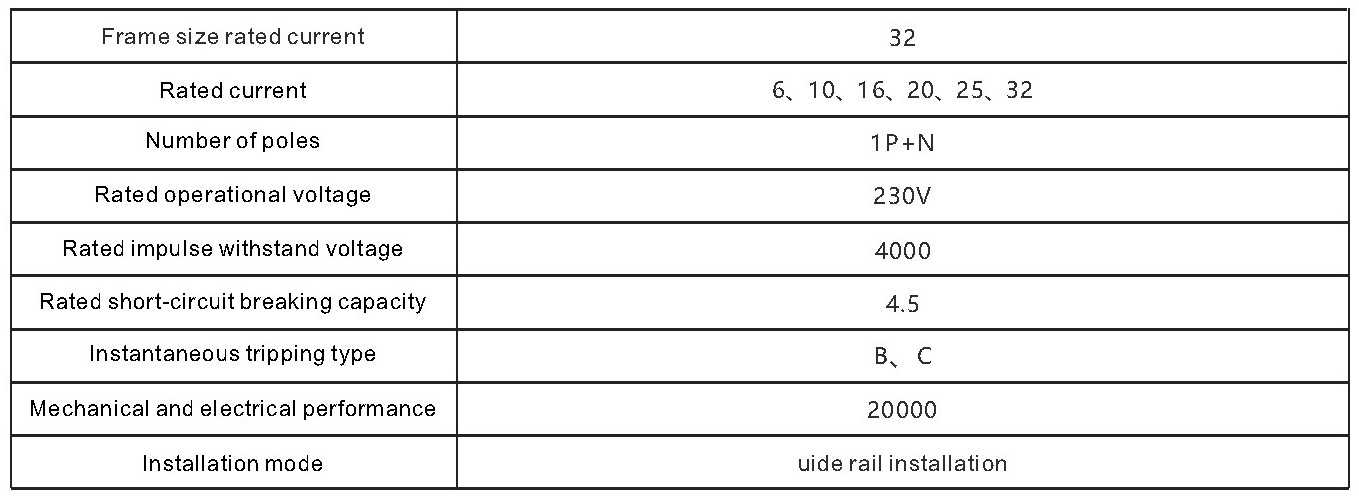

Technical index
