• Made in China 12V Chest Freezer

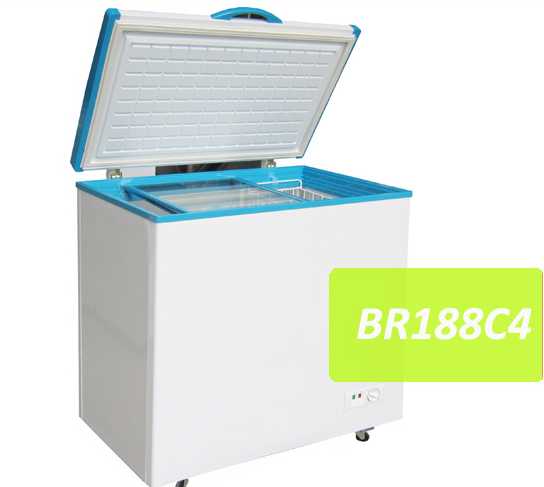

Made in China 12V Chest Freezer

Inner fan to force air circulation to insure temperature uniformity; Max -19oC for freezer compartment at 30oC Ambient temperature.

Product Details

Quick Details

Description



1,Features:
High quality DC compressor;
CFC-free refrigerant (R-134a);
Low power consumption;
Battery over discharge protection;
Insulation 110mm for saving more energy;
High temperature resistance and energy saving design;
AC/DC operated;
LCD display;
Strong door iron lock;
Inner fan to force air circulation to insure temperature uniformity;
Max -19ºC for freezer compartment at 30ºC Ambient temperature.


2,Specification:

Model BR90C4 BR118C4 BR138C4 BR188C4 BR238C4 BR318C4
Power Consumption 60W 72W 72W 72W 80W 80W
Input Voltage DC 12V/24V
Work Temperature <40ºC
Capacity 90 L (3.18 c.f.)  118 L (3.18 c.f.)  138 L (4.87 c.f.) 188 L (6.64 c.f.) 238 L (8.40 c.f.) 318 L (11.23 c.f.)
Product Size(mm) 625× 555× 910 815× 555× 910 815× 555× 910 875× 595× 920 1245× 660× 920 1245× 660× 920
Carton Size(mm) 685×565 × 935 885×560 × 930 885× 575× 930 930× 605× 940 1300× 680× 940 1300× 680× 940
N.W./G.W.(KG) 26/31 29/35 30/36 36/43 50/58 52/60
Loading Quantity 66PCS/20GP,
138PCS/40GP, 138PCS/40HQ.
52PCS/20GP,
104PCS/40GP, 104PCS/40HQ.
52PCS/20GP,
104PCS/40GP,
104PCS /40HQ.
42PCS/20GP,
88PCS/40GP, 88PCS/40HQ
34PCS/20GP, 70PCS/40GP, 70PCS/40HQ 26PCS/20GP, 54PCS/40GP, 54PCS/40HQ
Model BCD128C4 BR128C4 BR170C4
Power Consumption 40W 40W 40W
Input Voltage DC 12V/24V auto recognition
Work Temperature <45ºC
Capacity 128L 128L 170L
Product Size(mm) (L*W*H) 733*752*851 804*726*810 804*726*960
Carton Size(mm) (L*W*H) 852*741*847 825*741*847 825*741*997
N.W./G.W.(KG) 42/46 42/46 45/50
Loading Quantity 42PCS/20GP,
84PCS/40GP,
126PCS/40HQ.
36PCS/20GP,
84PCS/40GP,
126PCS/40HQ.
36PCS/20GP,
84PCS/40GP,
126PCS/40HQ.



3,NEW MODEL:
High quality DC compressor
automatic recognition
CFC-free refrigerant (R-134a)
AC/DC operated
Insulation 110mm , 50% Energy saving
Temperature range from +15 to -19ºC
precisely temperature control
Double top doors, Dual temperature control
High temperature resistance above 45ºC
Battery over discharge protection
Circulation fan with LED light (AUTO sensor)


Model BR233F BR303F BR335F BR384F BR433F
Power Consumption 50W 50W 55W 55W 60W
Input Voltage DC12/24V DC12/24V DC12/24V DC12/24V DC12/24V
Work Temperature <45ºC <45ºC <45ºC <45ºC <45ºC
Capacity 233L 303L 335L 384L 433L
Product Size (mm) 1213*736*815 1213*736*965 1613*736*815 1613*736*890 1613*736*965
Carton Size (mm) 1260*755*865 1260*755*1015 1660*755*865 1660*755*940 1660*755*1015
N.W./G.W.(KG) 53/56 58/65 64/72 70/78 76/84
Loading Quantity 26PCS/20GP, 81PCS/40GP 26PCS/20GP, 74PCS/40GP 20PCS/20GP, 63PCS/40GP 20PCS/20GP, 56PCS/40HQ 20PCS/20GP, 56PCS/40HQ
Model BR212RF BR277RF BR315RF BR362RF BR408RF
Power Consumption 50W 50W 55W 55W 60W
Input Voltage DC12/24V DC12/24V DC12/24V DC12/24V DC12/24V
Work Temperature <45ºC <45ºC <45ºC <45ºC <45ºC
Capacity 212L
94L-Fridge 118L-Freezer
277L
127L-Fridge
150L-Freezer
315L  145L-Fridge 170L-Freezer 362L
169L-Fridge 193L-Freezer
408L
192L-Fridge 216L-Freezer
Product Size (mm) 1213*736*815 1213*736*965 1613*736*815 1613*736*890 1613*736*965
Carton Size (mm) 1260*755*865 1260*755*1015 1660*755*865 1660*755*940 1660*755*1015
N.W./G.W.(KG) 60/66 68/74 80/86 83/89 86/92

Loading Quantity
26PCS/20GP, 81PCS/40GP 26PCS/20GP,
74PCS/40GP
20PCS/20GP, 63PCS/40GP 20PCS/20GP, 56PCS/40HQ 20PCS/20GP, 56PCS/40HQ
