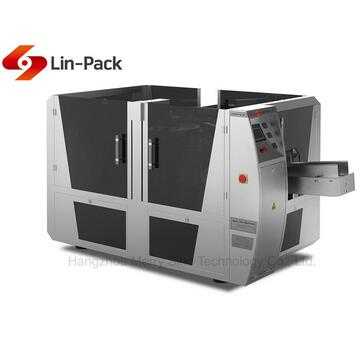

MR8-200RH High Speed Automatic Rotary Food Pouch Packing Machine
Block: chocolate, candies, cereal, biscuits, cakes, puffed food, etc.
Granule: nuts, capsules, seeds, feeds, pesticides, fertilizers, etc.
Powder: seasoning, milk powder, washing powder, fine sugar,etc.
Quick Details
Description
- Model NO.: MR8-200RH
- Application: Cleaning, Detergent, Drinks, Dairy Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
- Forming Species: Bag Moulding
- Driven Type: Electric
- Packaging: Pouch
- Model: Mr8-200rh
- Bag Sizes: W: 80-210mm, L: 100-300mm
- Capacity: 30-60bags/Min
- Total Power: 2.5kw (220V/380V, 3pH, 50Hz)
- Compress Air Requirement: More Than 0.8m3;/Min Supply by User
- Trademark: LIN-PACK
- Specification: 1710*1505*1640mm(L*W*H)
- Automatic Grade: Automatic
- Type: Filling and Sealing Machine
- Forming Function: Filling, Seal
- Material Type: Grain
- Packaging Material: Composite Materials
- Pouch Type: Four-Side Sealed Bags, Stand-up Pouches and So on
- Filling Volume: 10-1500g
- Package Error: Less Than 1g
- Weight: 1480kg
- Filling Product: Powder, Grain, Solid and Liquid
- Transport Package: Wooden Box
- Origin: Wenzhou, Zhejiang, China
Features and Characteristics:
- Quick chage-over and automatic adjustment of pouch width
- The advanced design ensures a stable performance and a longer life of the equipment, and a lower rate of defective products.
- Comply with the sanitation requirements of food packaging equipment to ensure food hygiene and safety
- A low waste of packaging materials
The machine adopts premade pouches with a complete pattern, a high-quality sealing, resulting in improved product quality and grades.
- Easy to Operate, with advanced PLC and POD (touch screen) electrical control system, friendly Man-Machine Interface, wide application, including liquids, paste, powder, granule, solid. Weighing equipments are available from material to material.
- The machine and the other Merry Sino devices make up a packing system.
Application:
Block: chocolate, candies, cereal, biscuits, cakes, puffed food, etc.
Granule: nuts, capsules, seeds, feeds, pesticides, fertilizers, etc.
Powder: seasoning, milk powder, washing powder, fine sugar,etc.
Liquid/sauce: detergent, juice, beverage, ketchup, jam
Pickles: carrots, etc.
Main Standard Equipment Part:
1. date printer 2. PLC control system 3. pouch opening devices 4. vibrator 5. cylinder 6. magnetic valve
7. temperature controller 8. vacuum pump 9. frequency convertor 10. output system
Optional Configuration:
material weighing filling machines, work platform, weight checker, material elevator, finished product conveyor,
metal detector
