• MIC 24 24 6 8000bph with CSA standard glass bottle juice isobaric wine filling and sealing machine

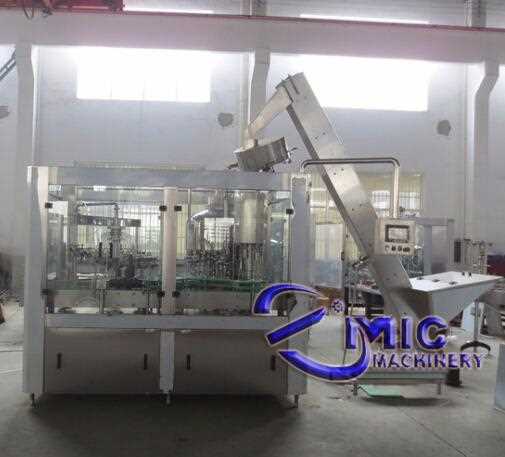

MIC 24 24 6 8000bph with CSA standard glass bottle juice isobaric wine filling and sealing machine

Filling material: Juice wine water soda; Material: SUS304/SUS316; Bottle type: Glass bottle;

Product Details

Quick Details

Description

  • Type: Filling Machine
  • Application: Beverage, Glass bottle juice isobaric wine filling and sealing machine
  • Packaging Type: Bottles, Glass bottle juice isobaric wine filling and sealing machine
  • Packaging Material: Glass, Glass bottle juice isobaric wine filling and sealing machine
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 380V/50Hz (Or according to customer's requirements)
  • Power: 1.5kw
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Micmachinery
  • Model Number: Mic 24-24-6
  • Dimension(L*W*H): 2200*1800*2550mm
  • Weight: 4500Kg
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: Glass bottle juice isobaric wine filling and sealing machine
  • Washing heads: 24 pcs
  • Filling heads: 24 pcs
  • Capping heads: 6 piece
  • Filling range: 0.1-1.5L
  • Filling speed: 8000BPH depends on filling volume
  • Filling type: Isobaric filling
  • Filling material: Juice wine water soda
  • Material: SUS304/SUS316
  • Bottle type: Glass bottle

Model NO.

XGF12-12-1

XGF18-18-1

XGF18-18-6

Rinsing heads

12

18

18

Filling heads

12

18

18

Capping heads

1

1

6

Production capacity

800-1500BPH

1000-2500BPH

3000-4000BPH

Model NO.

XGF24-24-6

XGF32-32-6

XGF72-72-8

Rising heads

24

32

72

Filling heads

24

32

72

Capping heads

6

6

8

Production capacity

3000-5000BPH

8000-10000BPH

10000-25000BPH



The machine is rotary design, Used for the production of various kinds of beer
This machine use pressure filling, liquid surface positioning. The machine for automatic control.
Through the touch screen to operate the machine.
It is applied to glass bottle and multifunctional which can be used for washing, filling and capping.
The whole process is automatic. It is made of high quality SUS304 stainless steel.
Main components are processed precisely by CNC machine tool.
The machine adopts advanced photo electricity to detect running status.



MIC 24 24 6 8000bph with CSA standard glass bottle juice isobaric wine filling and sealing machine

Company Profile

Company introduction: Our company (Micmachinery) is found 2009, since 2010, the management board has rebuilt, after reconstruction, Micmachinery.Co.,Ltd has become a company, has one factory, one joint venture factory, what's more, we have 3 offices in China, here we have connection office for customer conveinece.
