Quick Details
Description

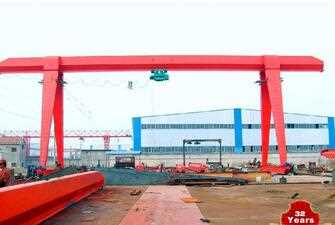

- Feature: Gantry Crane
- Condition: New
- Application: Widely used outdoor
- Rated Loading Capacity: 5-32 ton
- Rated Lifting Moment: Lifting Weight
- Max. Lifting Load: 32 Ton
- Max. Lifting Height: 18m
- Span: 10-35m
- Place of Origin: Henan, China (Mainland)
- Brand Name: Shengqi
- Model Number: MH Model
- Certification: ISO CE
- Warranty: 12 Months
- After-sales Service Provided: Engineers available to service machinery overseas
- Crane feature: Metal Industry Crane
- Main electrical parts: Schneider
- Lifting mechanism: Wire Rope Electric Hoist
- Color: Optional
- Crane type: Single Beam Light Duty Gantry Crane
- Power Source: 3 Phase 380V 50hz
- Control Method: Remote Control Press Button Control
- Working class: A3 A5
- Girder Structure: Box/Truss Type
- Limit switch: Provided
Safty fetures
1) Weight overload protection device
2) Lifting limit device
3) Voltage lower protection system
4) Phase sequence protection system
5) Emergency stop system
6) Rain cover for outside hoist, driving units, electrical cubicle
7) Warning indicator: flashing lights and warning sound
8) Wireless infra-detector for anti-collision
9) Crane travelling limit switch
|
SPECIFICATIONS FOR MH GANTRY CRANE
|
|
Lifting capacity
|
5t, 10t, 16t, 20t, 30t, 32t
|
|
Span
|
12/16/20/24/30 m
|
|
Lifting Height
|
6m, 9m
|
|
Travelling Mechanism
Speed
|
Ground
|
20 m/min
|
|
Controlling Room
|
30, 40 m/min
|
|
Reducer
|
ZSC600
|
|
Electric Hoist
|
Type
|
CD1
|
|
Lifting Speed
|
3.5 m/min
|
|
Travelling Speed
|
20 m/min
|
|
Working System
|
A3-A5
|
|
Power Source
|
3Phase 380V 50Hz
|
Winning a high reputation both at home and abroad, our company is a share-issuing enterprise of the new and high technology, and we are one of the professional manufacturers of large-scale hoists as well. The company is mainly engaged in the designing, manufacturing and installment of Shengqi brand 900t and lighter bridge type hoists, the gantries, electronic calabash and explosion-proof, electromagnetism, insulation, frequency conversion, remote control, metallurgy casting and so on.
With an covering area of 510000 square meters and the total assets of RMB 5.7 million, the enterprise now boasts a staff of more than 2000 people, including 300 people with middle or advanced professional titles and more than 450 suits various kinds of manufacturing and checkout equipment. The total sales income was RMB 1309 million in the year of 2009, with profits tax of more than RMB 20 million. For many years, Sheng Qi Company has been devoted to the research and manufacturing of the high-quality hoists. Model MU 300t-112m-63m-dock gantry and QD 75t-600t light duty frequency conversion hoist with special purpose for hydropower station, these new high-tech products were designed and manufactured independently, and they filled in the blank of the same trade of Henan Province.
The company is carrying on cooperation in the technology and market fields with Finland Konecranes which occupied the top-brand in the world hoist trade in the year of 2003. And it also offered the new-type bridge type hoist of low clearance with international most advanced level in the technological transformation project of the Shenyang Lathe Group.
Shengqi Company holds its independent intellectual property right, with the product category of more than 200 kinds and the output over 10000 hoists per year. Early through the authentication of ISO9001 among the same trade, the company has set up over 200 apartments all over the world which can offer swift high-quality service and spare part supply. Our products are sold well in U.S.A, European Union, Japan, South Korea, Singapore, and Vietnam etc.
Innovation is limitless prestige eternity! Always adhering to the principles of technological innovation and sincere management, we carry the duty of revitalizing national industry to offer the effective and on time solution to customers in the extensive production logistics field.
We welcome patronage and cooperation of friends from all walks of life, and together we can create win-win!
