Quick Details
Description
Quick Details
Condition: New Application: Bottle, PET Plastic Processed: PET, PET Blow Moulding Type: Stretch Blow Moulding Automatic: Yes Place of Origin: Jiangsu, China (Mainland) Brand Name: KM Model Number: CPJ, GTT Voltage: 220V 380V Power(W): 15kw~25kw Dimension(L*W*H): 1908*1858*1920mm Weight: 1300kg Certification: CE, ISO, SGS Warranty: 1 year, 1 year After-sales Service Provided: Engineers available to service machinery overseas Product Name: Low Maintenance Blow Moulding Machine Body diameter: Metal color Capacity: 3200-4000PCS/H or by order Bottle diameter: 20-100mm Market: PET bottle blowing machine market
Packaging & Delivery
Packaging Details: Standard export package for Low Maintenance Blow Moulding Machine
Delivery Detail: 45days

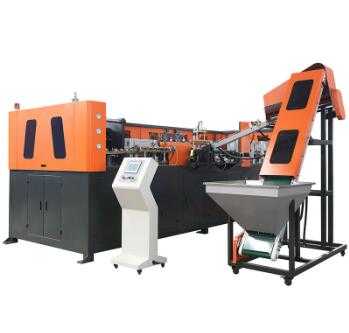

Low Maintenance Blow Moulding Machine
Specification
Product Name
Low Maintenance Blow Moulding Machine
Item Type
Bottle Blowing Machine
Place of Origin
Jiangsu, China (Mainland)
Model
KM-A4
Productivity
3200-4000PCS/H, depend on bottle design
Product type
Body diameter
20mm-100mm
Height
50mm-350mm
Neck diameter
15mm-38mm
Mold
Cavity
4cavities
Mold thick
240mm
Mold
500*500mm
Main machine power
Electrical source power
380v 3Phase /220v 3Phase 50/60HZ
Rated Power
49kw
Really use power
14kw
Air source
LP air compressor
1.6m3/min 1.0MPa 1set (15KW)
HP air compressor
1.0m3/min 3.0MPa 2sets
Air dryer
2.0m3/min 3.0MPa 1set
Cooling water
15L/min
Size
L*W*H
1908*1858*1920mm
Weight
3600kg
preform unscrambler
L*W*H
2000*950*2480mm
Weight
250kg
Resin available
PET
Certification
CE SGS ISO
Warranty
1 year
Zhangjiagang King Machine Co., Ltd. is a professional manufacturer of beverage machinery and Plastic Machinery. We are located in Zhangjiagang City, near Shanghai city.
Best technical plans, superior products and perfect after-sales services are our specific advantages in the market competitions. With scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas markets. We have been producing our goods with mature technique and first-class quality. Our products are not only marketed inland, but also exported to tens of countries such as Turkey, Poland, Uzbekistan, Malaysia, Indonesia and Egypt.
"Growing with clients" is always our management concept. We believe truthfulness, conscientiousness, enterprising spirit, continuous improvement and creativeness in running business, which helps our finest products enter the market. At present, we manufacture and provide the following lines to our customers:
Beverage Filling Complete Line
-water treatment plants
-water filling machine
-beverage filling machine
-beverage preration system
-pckages equipments
-coding machine
-labeling machine
-Pe Film Shrink Wrapping ,Machine
-Injection machine
-Blow Moulding Machine
We welcome distributors and end-users from around the world to cooperate with us and look forward to receiving your inquiries in the near future.
