Quick Details
Description
Power Supply: 220V
Max. Wheel Weight: 210kg
Place of Origin: Guangdong, China (Mainland)
Brand Name: GAT
Model Number: GA-300S
Warranty: 1 Years, 1 year
workshop machine: 3D Wheel Alignment Equipment

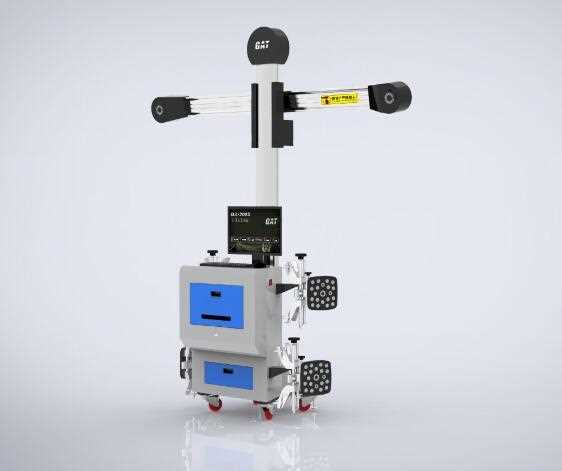

Name: Wheel Alignment Equipment
Keywords: Wheel Alignment Equipment
Brand: GAT
Model: GA-300S
Certification: CE, ISO
Original: Shenzhen, China
Trade Terms: FOB CIF EXW
Function: Wheel Alignment Equipment
Specifications:
|
Item
|
Precision
|
Range
|
|
Front Total Toe-in
|
±0.02°
|
±20°
|
|
Camber
|
±0.01°
|
±20°
|
|
Caster
|
±0.02°
|
±20°
|
|
SAI/KPI
|
±0.02°
|
±20°
|
|
Setback
|
±0.02°
|
±5°
|
|
Tread
|
±2mm
|
|
|
Wheelbase
|
±2mm
|
|
Professional:
* Fits all kinds of lifts: Two post lift, Scissor lift and Four post lift
* Language: English, Spanish, Russian, German
* Dynamic constitute coordinate, no affected by the inclination of lift
* No waiting during rolling or caster swing, save test time
* Automatic calculate wheel diameter, no need to input manually
* High precision anti-throwing target, reinforced plastic enclosure
* A wide range of wheel clamp, with 10’-23’ solid & precision clamp
* With unique quick testing model, saving time and work efficiently
Reliable:
* New small target design
* Push rolling-out compensation
* Non-stop at push rolling-out compensation
* 10/20 degree non-stop at caster swing
* Ultra bring target, minimal the sunlight abuse
* Vehicle position auto adaption
* Simplicity and painless at installation
* Easy installation, not require on-site calibration
* Camera beam automatically follow lift movement, assure 100% full height range measurement
Packaging & Delivery
| Packaging Details |
standard carton of GA-300S |
|---|
| Delivery Time |
5 work days after money receive |
|---|
Our company owns products with the brand of GAT. Our headquarters is located in Shenzhen, China. GAT is a manufacturer of wheel aligners, injector cleaners, A/C service machines, video scopes with strong technical force.
We provide professional technical guidance and satisfying after-sales service for all our customers. We have enjoyed a high reputation among our customers for the cost effective products with high quality. Our products have been exported to North America, South America, Southeast Asia, West Africa and other countries and regions.
We would like to invite you to join us and wish you success with our products.
