Quick Details
Description
|
Expansion cylinder power
|
|
0.55kw
|
standard configuration
|
|
Cutter power
|
Particle., semihard plasticity(coal gangue, shale)
|
5.5kw
|
|
Particle., hard plasticity(coal gangue, shale)
|
7.5kw
|
Special orders
|
Model: QTQD+QPA2—(height X thickness X pieces) —（power）

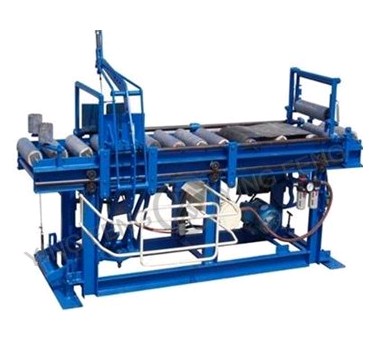

Light Auto brick cutting machineconsists of process control and air promotion slitter and light cutter.
It’s suitable for the product line of small scale, soft plasticity and semihard plasticity.
To realize automatic and semi-automatic operation.
.jpg)
Structural characteristics
Automatic equipment of defending leaning：Never cut obliquely and no need to adjust.
Stainless steel cylinder table-board: mud strips reaches the right place automatically; accurate positioning to avoid wasting the mud; saving oil 70%-100% than the normal table-board.
Stainless steel push board: wear resistant, the working life is longer 3 times than the normal one.
Oriented angle and Oriented arc: high accuracy to make the steel wires go into groove, reduce 70% broken steel wires averagely.
High-abrasive material craft: Leader is hard chromeplate and the compound oriented bearing. Its resistance is small and its working life is long.
Buffer power accumulator: absorb return impact, and translate it to push power.
High strength, large thrust: mainly usaged for the mud strip whose original material is coal gangue and shale.
It’s suitable for different soft and hard plasticity mud strips: it’s saving oil
When usaged for high sand content mud or other inferior mud; if the mud strips is very soft, the expansion table-board should be intensed in advance.
Maximum incision rate: 20 ts/min Maximum length of mud strips：1254mm
Maximum incision height: 250mm(specially appointed)
