Quick Details
Description
- Place of Origin: Beijing, China (Mainland)
- Brand Name: Daelim
- Type: High Voltage
- Poles Number: 3
- Rated voltage: 40.5kV
- Rated frequency: 50/60Hz
- Certificate: CE CB ISO9001
- Rated current: 3150A
- mechanical endurance: 10000
1.General

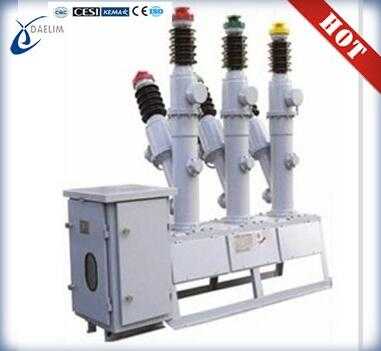

Type LW24- /T outdoor H.V. A.C. dead tank SF6 gas circuit breaker is a new kind of circuit breaker with self-blast interrupter and spring operating mechanism, developed on the basis of technology of product imported from Mitsubishi, Japan.The latest achieve—arc extinguishing principle of gas-blast pressure adapting with breaking-current is employed,by which most of energy required for breaking rated short-circuit current are acquired from arc itself.Therefore, the demand for operating power is reduced significantly. The three pole interrupters are placed inside three metal enclosures respectively.The circuit breaker can be mechanically three-phase gang-operated. Both remote electrical control and local manual control can be realized.
Type CT20-II spring operating mechanism, provided with the product, is a kind of mechanism with low operating power, minimum maintenance work needed and high reliability. The product reaches international advanced level in the respect of main technical performance.
LW24-40.5;72.5 /T passed the prototype appraisal by former Machinery Industry Department,Electricial Power Industry Department and National Science & Technology Committee in December 1997.
LW24-40.5;72.5 /T passed operation appraisal by National Machinery Industry Bureau,National Electricial Power Industry Bureau,and National Science & Technology Committee in December 1999.
LW24-40.5 product passed three-phase back-to-back capacitor bank switching test and three-phase shunt reactor switching test at High-Power Laboratory KEMA, and obtained successfully test certificates of KEMA in October 2004.
LW24-72.5 product passed back-to-back capacitor bank switching test and shunt reactor switching test at High-Power Laboratory of KEMA,and obtained successfully test certificates of KEMA in November 2004.
LW24-126;145 /T passed the prototype appraisal by former Machinery Industry Department,Electricial Power Industry Department and National Science & Technology Committee in December 2008.
LW24-252/T passed the prototype appraisal by former Machinery Industry Department,Electricial Power Industry Department and National Science & Technology Committee in November 2002.
220kV and above circuit breaker with “XD” brand awarded title of “China Top Brand” product in Sept.2007.
2.Normal Service Condition
2.1.Altitude:≤3000m
2.2.Humidity monthly:≤90%
2.3.Max .wind velocity:≤35m/s
2.4.Pollution class:III class; IV class
2.5.Ambient air temperature:-35℃~40℃(It’s satisfied under condition of -40℃ in heavy cold area)
2.6.Max .temperature difference daily: 25K
2.7.Earthquake withstand density:9 degree
2.8.Ice coating: ≤10mm
2.9.Max. radiance from sun: 1000 W/m2
Note: When product is used under the condition out of above range, user and manufacturer shall consult to confirm.
